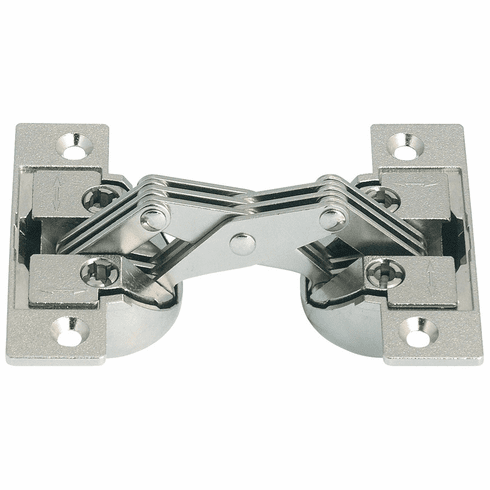

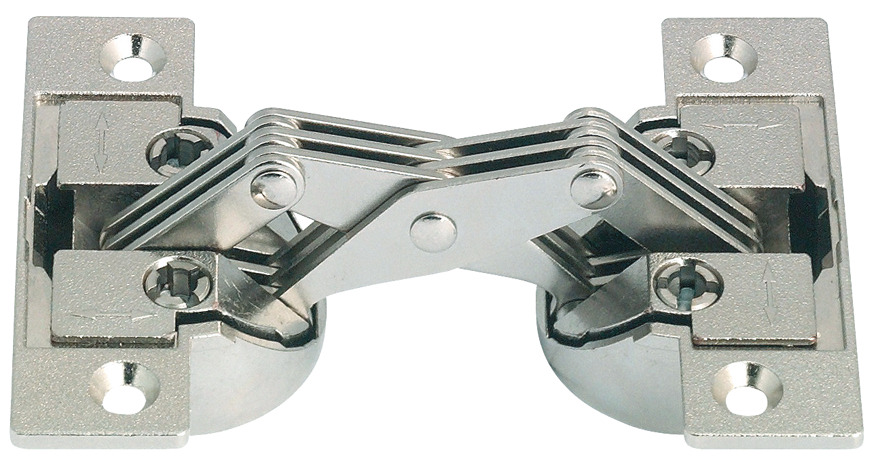

Hafele 325.00.708 Miter Hinge, GS 45/90, 135 degree Opening Angle For doors and flaps, GS 45, opening angle 135 degree
, 32500708, 325-00-708 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 325.00.708
Product Title: Miter Hinge, GS 45/90, 135° Opening Angle, For doors and flaps, GS 45, opening angle 135°
Category: Miter Hinge, GS 45/90, 135° Opening Angle, For doors and flaps, GS 45, opening angle 135°
Item Details …

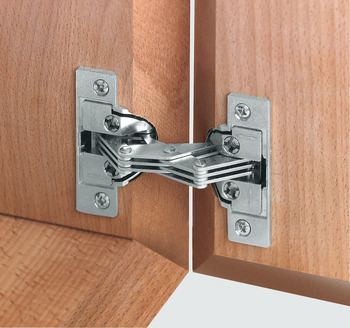

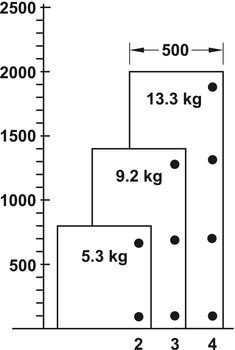

- the only hinge that can be used for furniture structures with mitred cabinet corners and door
- not visible from the outside when the door is closed
- Area of application : Doors and flaps
- Concealed hinge version : miter
- For door material : wood
- Door processing for assembly : with cup drilling
- Material : Cup: Zinc alloy, Hinge arm: Steel
- Color/finish : nickel plated
- Opening angle : 135°
- For door thickness : 16?–?22 mm
- Side panel thickness : 16?–?20 mm
- Cup drilling depth : 13.50 mm
- Cup drilling Ø : 35.00 mm
- Cup fixing : for screw fixing

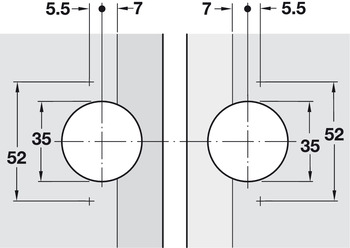

- Drilling pattern : 52/5.5

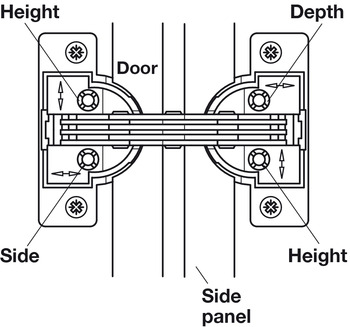

- Adjustment facility : Side adjustment: 1.5 mm, 3-dimensional

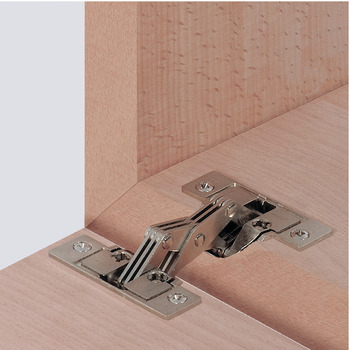

- Installation : For screw fixing
- Installation reference : Provide 2 mm door gap all round.The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.
Additional Information …
Provide 2 mm door gap all round.The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.Data Sheet
