Hafele 329.68.006 Clip Mounting Plate, Duomatic SM, steel, with chipboard screws 6 mm, BAR3L69F

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.68.006

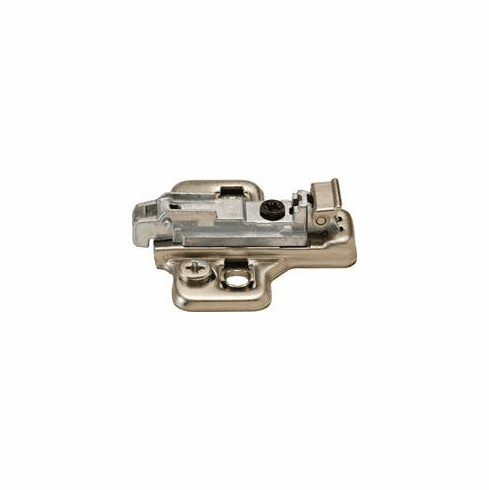

  Product Title: Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric, 6 mm, BAR3L69F

  Category: Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric

  Item Details …

  - Automatic Adjustment Response feature: a slight turn of the depth adjustment cam or vertical cam quickly positions hinge – eliminating need for manual positioning by loosening screws.

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

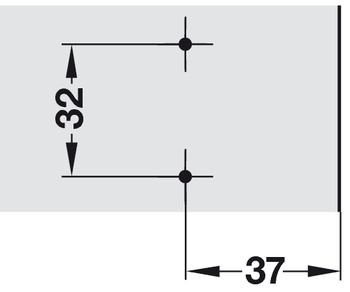

  - Screw distance : 32.00 mm

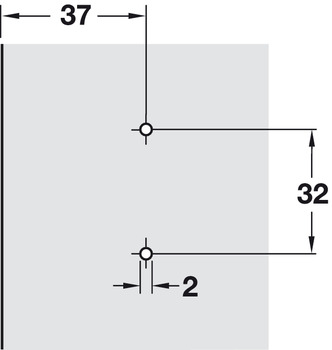

  - Edge distance : 37.00 mm

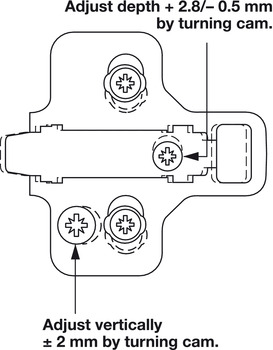

  - Adjustment facility : Height adjustment Via eccentric, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM
