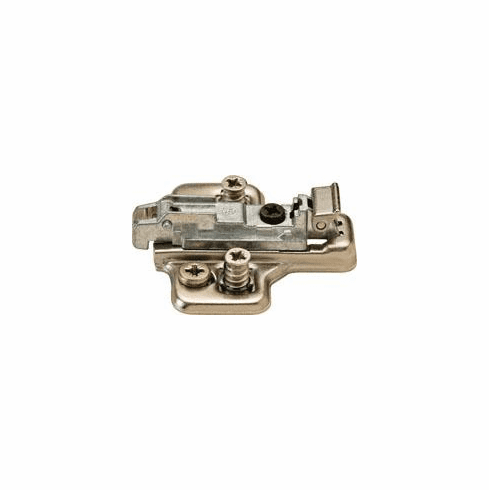

Hafele 329.69.016 Clip Mounting Plate, Salice, with Pre-Installed 11 mm Euro Screws for screw fixing, quick fixing system, depth and height adjustment via eccentric, 6 mm, BARGL69F/16

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.69.016

  Product Title: Clip Mounting Plate, Salice, with Pre-Installed 11 mm Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 6 mm, BARGL69F/16

  Category: Clip Mounting Plate, Salice, with Pre-Installed 11 mm Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

  - For drill hole Ø : 5.00 mm

  - For side panel thickness : 19 mm

  - Drilling depth : 11.00 mm

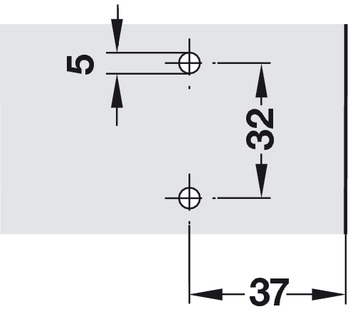

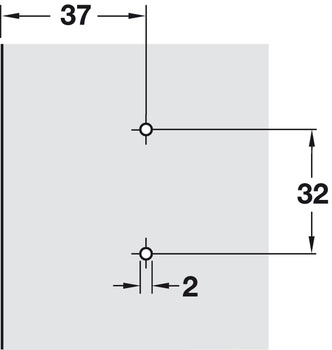

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

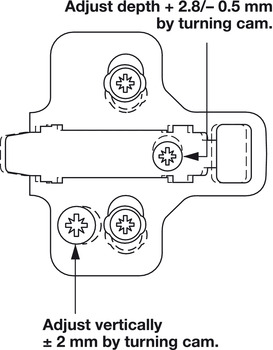

  - Adjustment facility : Height adjustment Via eccentric, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM
