Hafele 343.61.503 Concealed Hinge, Salice Face Frame 2-Cam, 106 degree Opening Angle, Self Close 3/4" Overlay, model CSR3799 screw-on

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.61.503

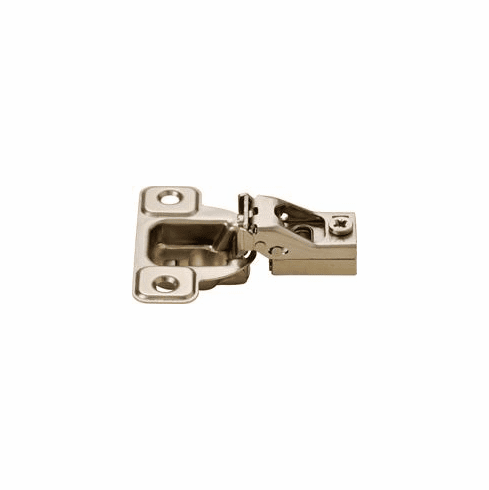

  Product Title: Concealed Hinge, Salice Face Frame 2-Cam, 106° Opening Angle, Self Close, 3/4" Overlay, model CSR3799 screw-on

  Category: Concealed Hinge, Salice Face Frame 2-Cam, 106° Opening Angle, Self Close,

  Item Details …

  - Door processing for assembly : with cup drilling

  - Material : Steel

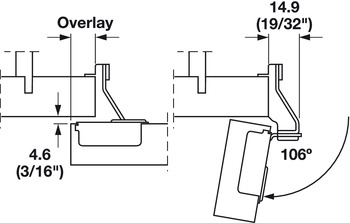

  - Opening angle : 106°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

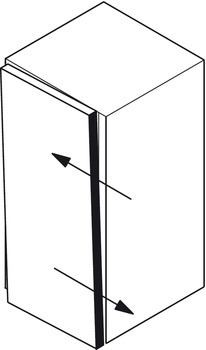

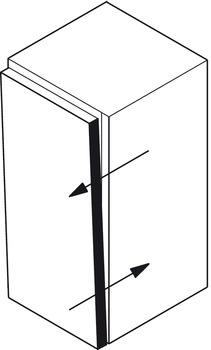

  - Adjustment facility : Side adjustment ±1.5 mm, Height adjustment ±2.5 mm

• Data Sheet

  Detailed Data Sheet

• Specifications

  Hafele 343.61.503, 343-61-503, 34361503, 343.61


  Specifications/Hafele Catalog - Page# FC9.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
