Hafele 343.61.510 Concealed Hinge, Salice Face Frame 2-Cam, 106 degree Opening Angle, Self Close 1/2" Overlay, model CSP3799XR screw-on

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.61.510

  Product Title: Concealed Hinge, Salice Face Frame 2-Cam, 106° Opening Angle, Self Close, 1/2" Overlay, model CSR3799, press-fit

  Category: Concealed Hinge, Salice Face Frame 2-Cam, 106° Opening Angle, Self Close,

  Item Details …

  - Door processing for assembly : with cup drilling

  - Material : Steel

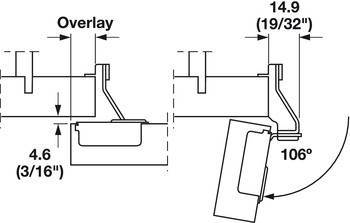

  - Opening angle : 106°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

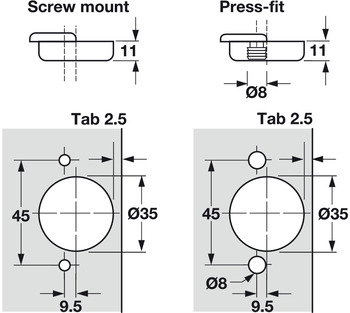

  - Drilling pattern : 45/9.5

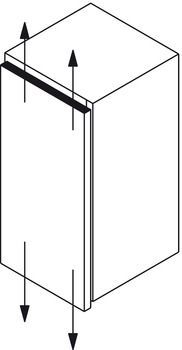

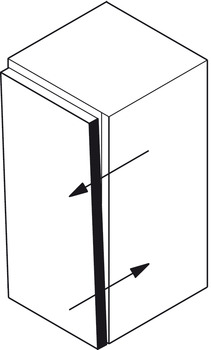

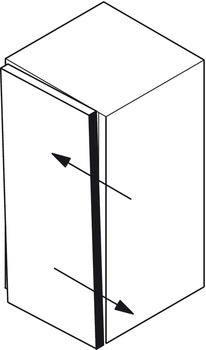

  - Adjustment facility : Side adjustment ±1.5 mm, Height adjustment ±2.5 mm

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.71-9.73.pdf

  Hafele 343.61.510, 343-61-510, 34361510, 343.61


  Specifications/Hafele Catalog - Page# FC9.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
