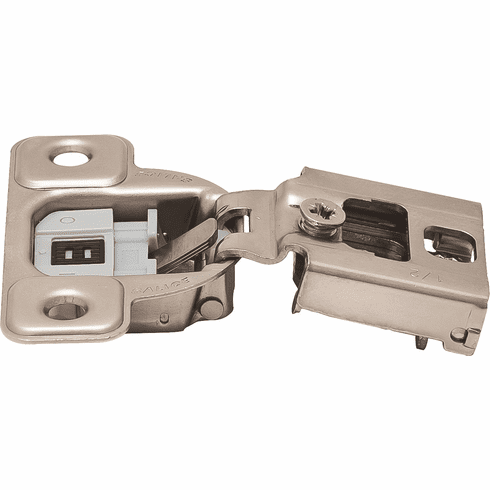

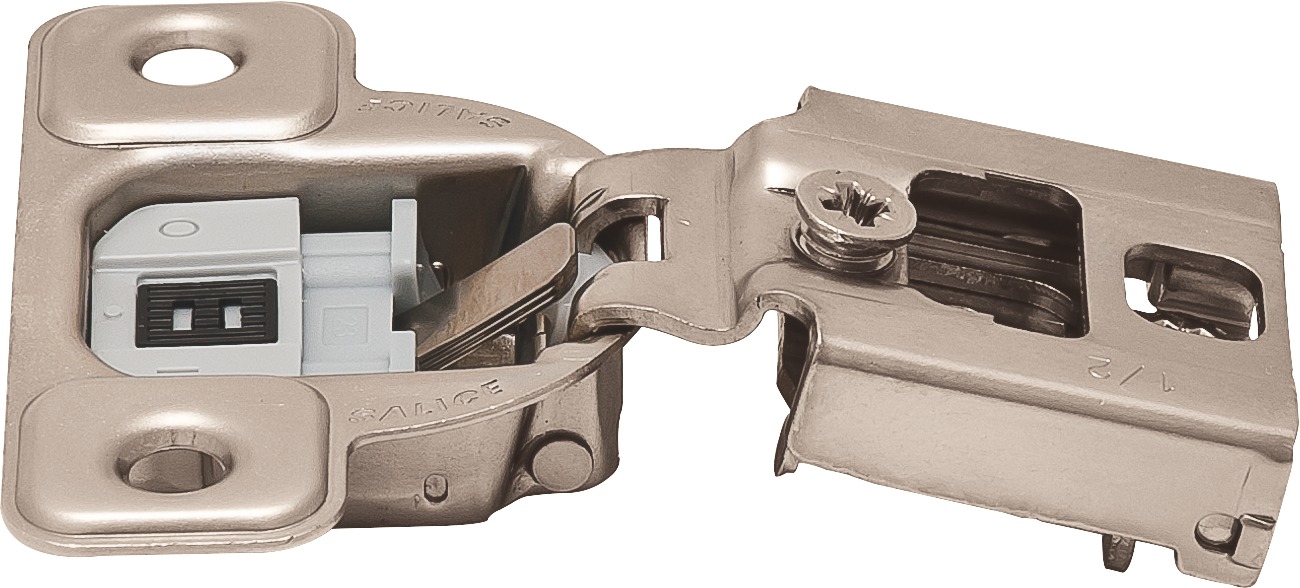

Hafele 343.61.520 Concealed Hinge, Salice Excentra 2-Cam, 106 degree Opening Angle, Soft Close, 1/2" Overlay Nickel-plated, screw-on, model CUP37D9

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.61.520

  Product Title: Concealed Hinge, Salice Excentra 2-Cam, 106° Opening Angle, Soft Close, 1/2" Overlay, Nickel-plated, screw-on, model CUP37D9

  Category: Concealed Hinge, Salice Excentra 2-Cam, 106° Opening Angle, Soft Close, 1/2" Overlay,

  Item Details …

  - Technology that delivers soft closing door that respond with a smooth steady motion

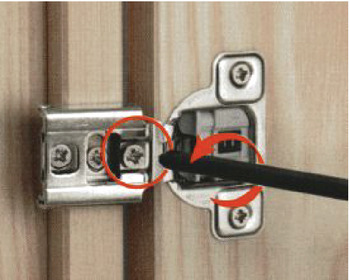

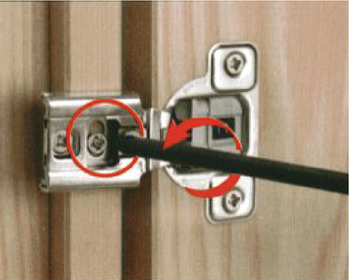

  - Perfect door alignment is simple to achieve with 2 automatic cam adjustments

  - Features an 11 mm cup depth to accommodate narrow door profiles

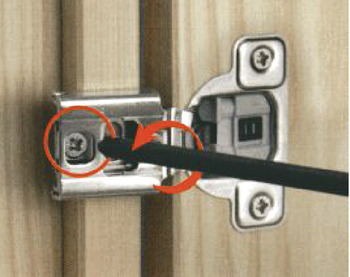

  - Increased range of side adjustment insures small, consistent gaps between doors

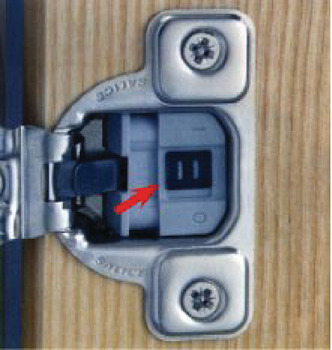

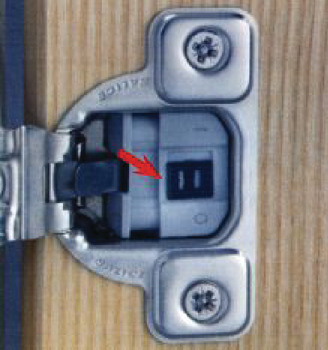

  - The easy to use activation switch allows for closing speed options

  - Tab 2.5 mm for 1/2”, 2.5 - 4.0 mm for 1 1/4”

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 106°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.74



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.71-9.73.pdf

  Hafele 343.61.520, 343-61-520, 34361520, 343.61


  Specifications/Hafele Catalog - Page# FC9.70: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
