Hafele 344.05.810 Single Pivot Institutional Hinge Cup, Aximat 200, Grade 1, for 8 mm Holes, Dowel Mount

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.05.810

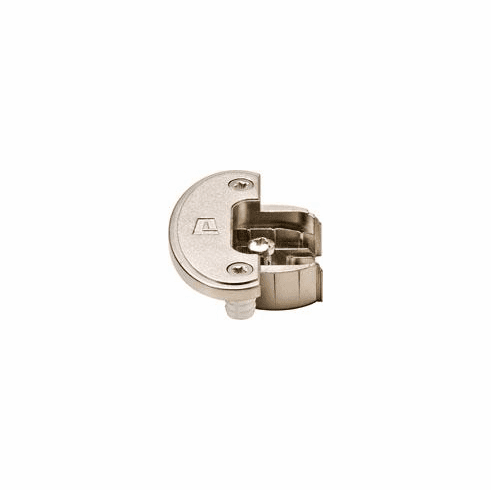

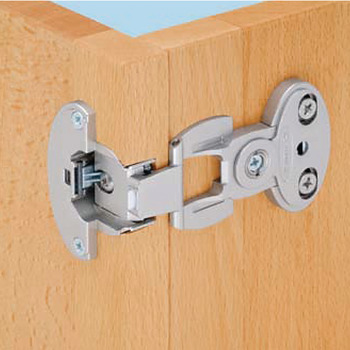

  Product Title: Single Pivot Institutional Hinge Cup, Aximat® 200, Grade 1, for 8 mm Holes, Dowel Mount,

  Category: Single Pivot Institutional Hinge Cup, Aximat® 200, Grade 1, for 8 mm Holes, Dowel Mount,

  Item Details …

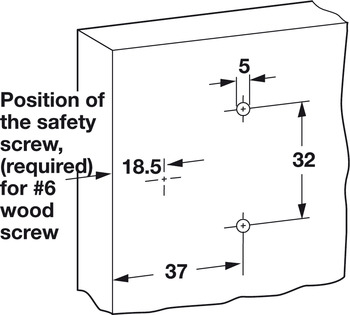

  - Attachment screws are not included. A #6 flat head wood screw is used for safety screw and hinge cup attachment.

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - Tested in accordance with ANSI/BHMA Grade 1 standards

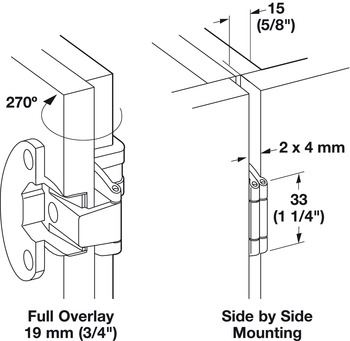

  - Area of application : For full overlay or inset doorsFor single cabinets and storage walls

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

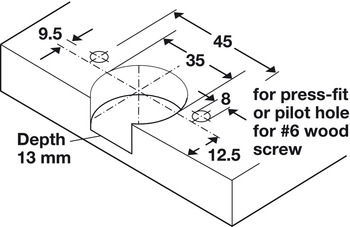

  - Cup drilling depth : 13.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

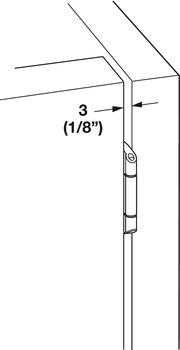

  - Adjustment facility : Side adjustment <3 mm, Height adjustment ±2 mm, Depth adjustment ±2 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.6-9.6.pdf

  Hafele 344.05.810, 344-05-810, 34405810, 344.05


  Specifications/Hafele Catalog - Page# FC9.6: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Wood Screw, Flat Head Countersunk, Phillips Drive
