Hafele 344.05.910 Single Pivot Institutional Hinge Arm, Aximat 200, Grade 1, Screw Mount Full overlay, 270 degree opening angle

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.05.910

  Product Title: Single Pivot Institutional Hinge Arm, Aximat 200, Grade 1, Screw Mount, Full overlay, 270° opening angle

  Category: ,

  Item Details …

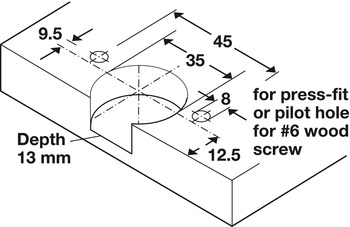

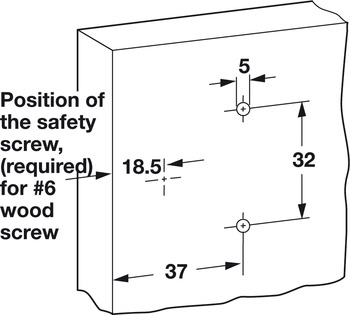

  - Attachment screws are not included. Installation of a #6 flat head wood screw (used for safety screw and hinge cup attachment) is required.

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - Tested in accordance with ANSI/BHMA Grade 1 standards

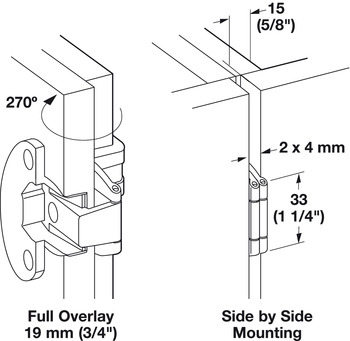

  - Area of application : For full overlay or inset doorsFor single cabinets and storage walls

  - Material : Zinc alloy

  - Opening angle : 270°

  - For door thickness : 16 – 21 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.6-9.6.pdf

  Hafele 344.05.910, 344-05-910, 34405910, 344.05


  Specifications/Hafele Catalog - Page# FC9.6: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Pivot Institutional Hinge Cup, Aximat 200, Grade 1, Screw Mount (choose one):


  • Matt nickel

    344.05.800

    Click to order



  Optional Accessories:



  • Single Pivot Institutional Hinge Cup, Aximat 200, Grade 1, for 8 mm Holes, Dowel Mount
  • Single Pivot Institutional Hinge Cup, Aximat 200, Grade 1, Screw Mount
