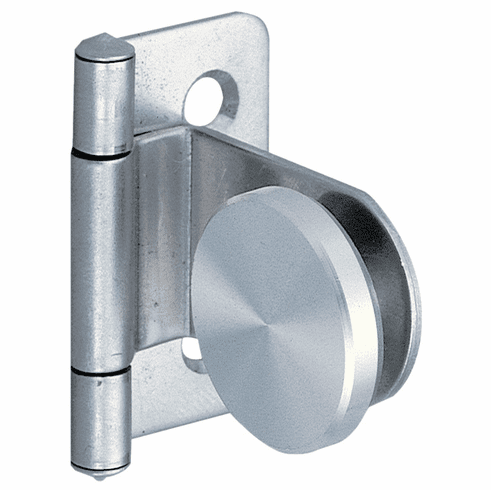

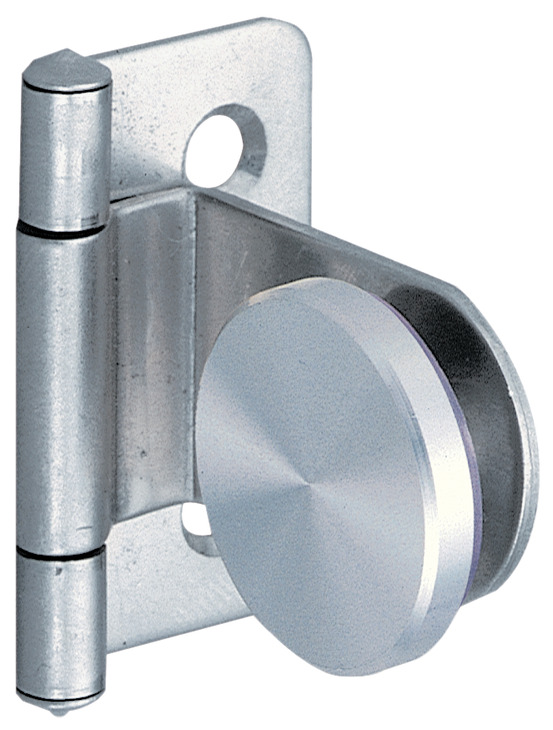

Hafele 361.46.010 Inset Glass Door Hinge, 180 degree Opening Angle, for 4-6 mm Doors For lightweight glass doors, 304 stainless steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.46.010

  Product Title: Inset Glass Door Hinge, 180° Opening Angle, for 4-6 mm Doors, For lightweight glass doors, 304 stainless steel, model #GH-34/0/S-P

  Category: Inset Glass Door Hinge, 180° Opening Angle, for 4-6 mm Doors, For lightweight glass doors

  Item Details …

  - Opening angle : 180°

  - Load bearing capacity per pair : 4.00 kg

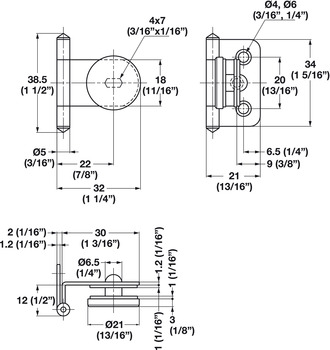

  - Knuckle diameter : 5.00 mm

  - For door material : glass

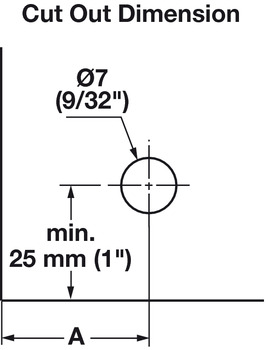

  - For drill hole Ø : 7 mm

  - Door construction : Inset

  - Door weight min. : Max. 8.8 lbs

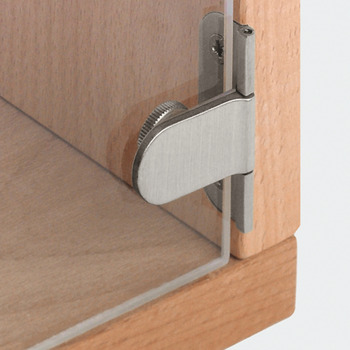

  - Area of application : For lightweight inset glass doors

  - For door width : ?450 mm

  - For door width (inches) : 17 11/16"

  - For door height : ?700 mm

  - For door height (inches) : 27 9/16"

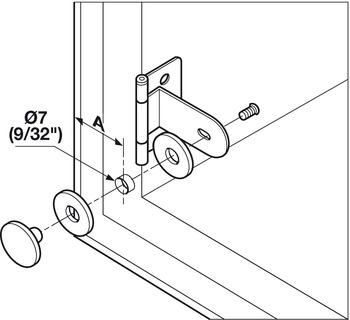

  - Installation : Screw mounted – requires Ø8 mm (516") drill hole in glass

  - Door width max. : 450.00 mm

  - Door height max. : 700.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.175



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.155-9.156.pdf

  Hafele 361.46.010, 361-46-010, 36146010, 361.46
