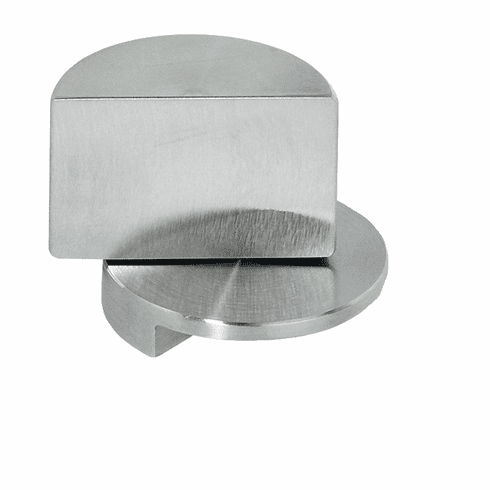

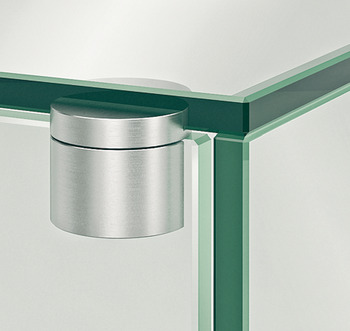

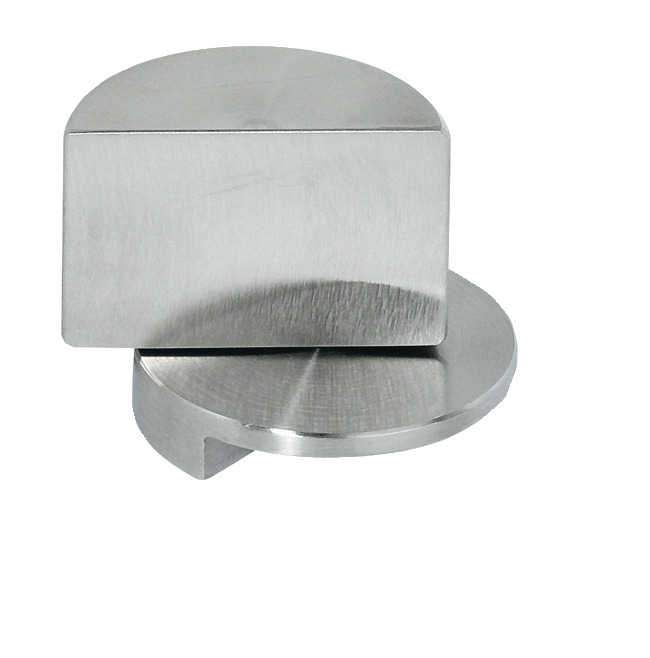

Hafele 361.51.010 Glass Door Pivot Hinge, 210 degree, External, for All-Glass Constructions f all-glass constructions, for inset doors, 30 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.51.010

  Product Title: Glass Door Pivot Hinge, 210°, External, for All-Glass Constructions, f all-glass constructions, for inset doors, Ø 30 mm

  Category: Glass Door Pivot Hinge, 210°, External, for All-Glass Constructions, f all-glass constructions, for inset doors

  Item Details …

  - Furniture Construction : for all-glass constructions

  - Material : Stainless steel

  - Color/finish : matt

  - Opening angle : 210°

  - For glass thickness : ?12 mm

  - For door material : glass

  - Door processing for assembly : without glass drilling

  - Door construction : Inset

  - Area of application : For inset doors

  - Installation : For glue fixing (UV glass adhesive bond)

  - Supplied with:

  - with installation instructions


  Additional Information …

  A threaded bolt in the hinge allows the door to be removed after bonding.Recommended door load: Do not exceed the height to width ratio of 3:2.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for gluing the top centre for inset doors, glass/glass



• Specifications

  Hafele 361.51.010, 361-51-010, 36151010, 361.51


  Specifications/Hafele Catalog - Page# FC11.177: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Glass Door Pivot Hinge, Opening Angle 210°, Stainless Steel, External, For Glass/Wood Constructions
