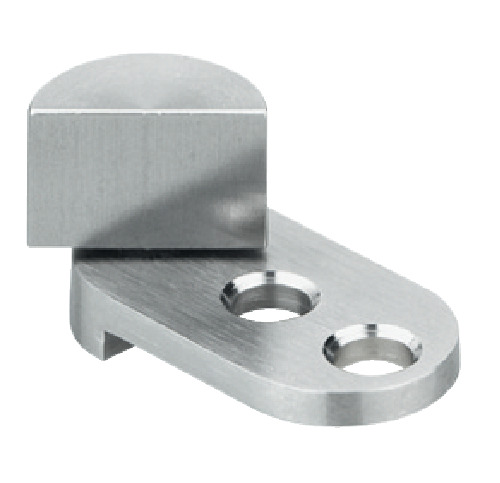

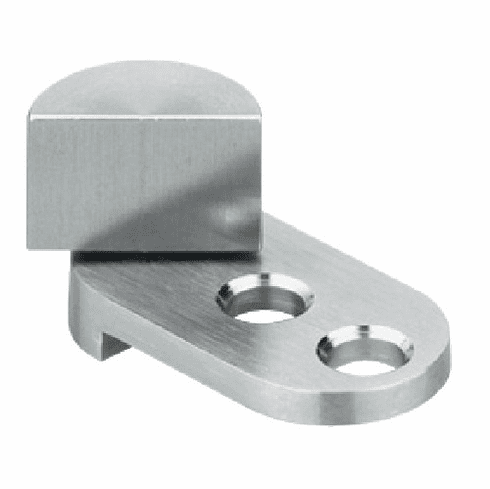

Hafele 361.61.000 Glass Door Pivot Hinge, Opening Angle 210 degree, Stainless Steel, External, For Glass/Wood Constructions For glass/wood constructions, for inset doors, 20 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.61.000

  Product Title: Glass Door Pivot Hinge, Opening Angle 210°, Stainless Steel, External, For Glass/Wood Constructions, For glass/wood constructions, for inset doors, Ø 20 mm

  Category: Glass Door Pivot Hinge, Opening Angle 210°, Stainless Steel, External, For Glass/Wood Constructions, For glass/wood constructions, for inset doors

  Item Details …

  - Furniture Construction : for glass/wood constructions

  - Material : Stainless steel

  - Color/finish : matt

  - Opening angle : 210°

  - For glass thickness : ?12 mm

  - For door material : wood, glass

  - Door processing for assembly : without glass drilling

  - Door construction : Inset

  - Area of application : For inset doors

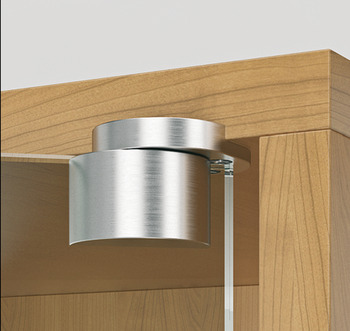

  - Installation : Door: Glue fixing (UV glass adhesive bond) Cabinet: For recess mounting and screw fixing

  - Supplied with:

  - with installation instructions


  Additional Information …

  A threaded bolt in the hinge allows the door to be removed after bonding. Recommended door load: Do not exceed the height to width ratio of 3:2.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for gluing the top centre for inset doors, glass/wood



• Specifications

  Hafele 361.61.000, 361-61-000, 36161000, 361.61


  Specifications/Hafele Catalog - Page# FC11.177: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Glass Door Pivot Hinge, 210°, External, for All-Glass Constructions
