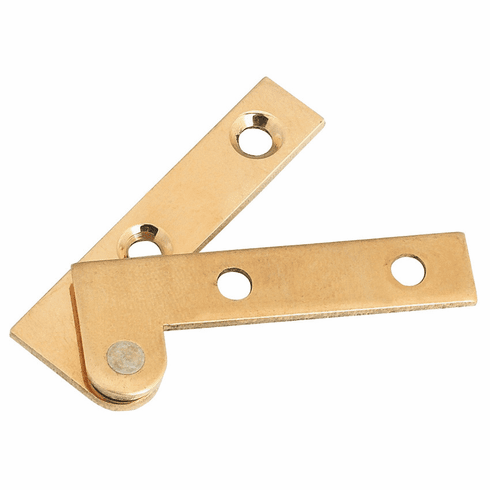

Hafele 362.10.803 Corner Pivot Hinge, Straight, 250 degree Opening Angle Length: 50 mm (1 15/16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 362.10.803

  Product Title: Corner Pivot Hinge, Straight, 250° Opening Angle, Opening angle 250°, Length: 50 mm (1 15/16")

  Category: Corner Pivot Hinge, Straight, 250° Opening Angle, Opening angle 250°, Length: 50 mm (1 15/16")

  Item Details …

  - Flange length : 50.00 mm

  - Color/finish : polished

  - Length (inch) : 1 15/16"

  - Version : Straight

  - Load bearing capacity max. : 20.00 kg

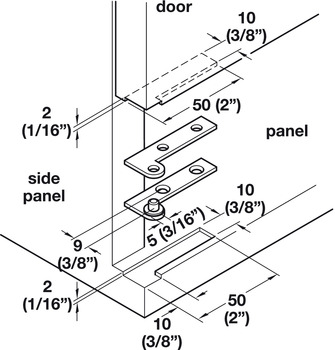

  - Area of application : For concealed installation

  - Material : Brass

  - Opening angle : 250°

  - Flange thickness : 2.00 mm

  - Installation : For screw fixing


  Additional Information …

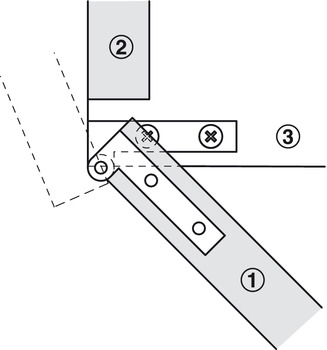

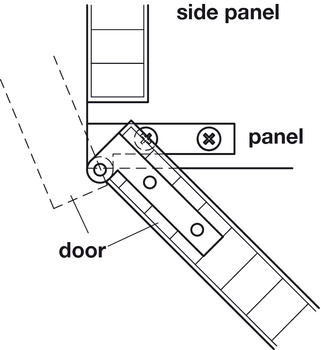

  Pivot point on outer side

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.92



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.85-9.89.pdf

  Hafele 362.10.803, 362-10-803, 36210803, 362.10


  Specifications/Hafele Catalog - Page# FC9.96: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
