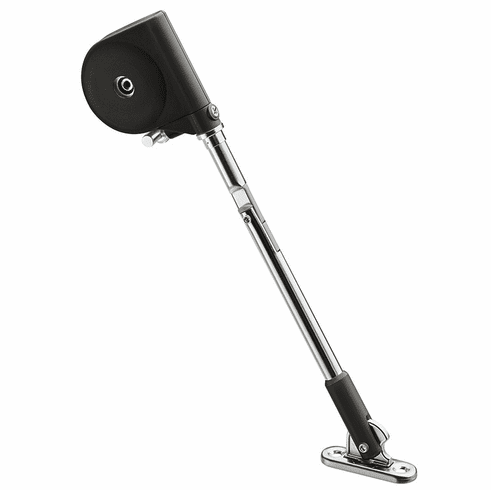

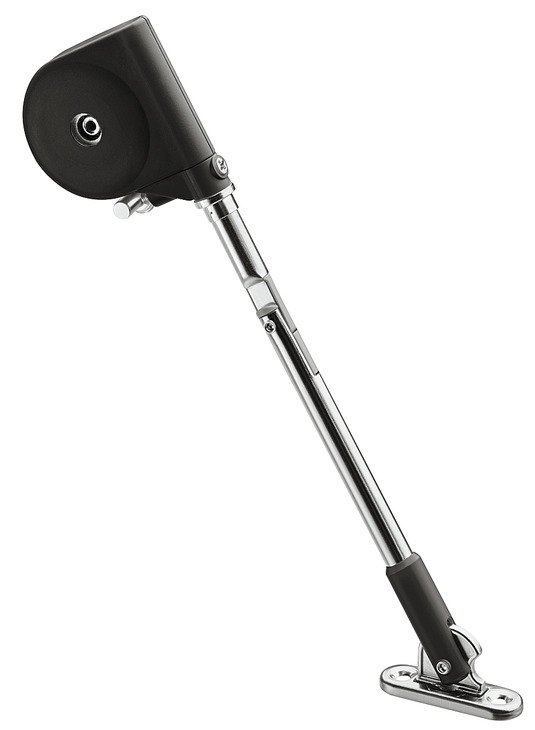

Hafele 365.30.300 Flap Stay, with Speed-Mount Bracket Housing: Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 365.30.300

  Product Title: Flap Stay, with Speed-Mount Bracket, Housing: Black

  Category: Flap Stay, with Speed-Mount Bracket, Housing: Black

  Item Details …

  - Area of application : for wooden flaps

  - Version : With angular bracketWith fixed braking effectWith holding mechanism

  - Material : Steel

  - Color/finish : Nickel plated

  - Color/Finish cover : Housing: Black

  - Lid material : Wood

  - Opening angle : 90 °

  - Mounting : right and left hand use

  - Installation : Right

  - Supplied with:

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  365.30.300 SDS-C110 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.157



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.94-9.94.pdf

  Hafele 365.30.300, 365-30-300, 36530300, 365.30


  Specifications/Hafele Catalog - Page# FC9.103: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Lid Stay, with joint, for wooden flaps
  • Flap hinge, All Metal, 3 Way Adjustable and Detachable
  • Flap Hinge, 3-Way Adjustable and Detachable, Zinc
