Hafele 402.33.026 Sliding Door Hardware, Slido Classic 40 IF C, set for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg, Infront, for 2 door, with retainer

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.33.026

  Product Title: Sliding Door Hardware, Slido F-Line21 40C, set, for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg, Infront, for 2 door, with retainer

  Category: Sliding Door Hardware, Slido F-Line21 40C, set, for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg

  Item Details …

  - Number of doors : 2.00

  - For door thickness : 16?–?19 mm

  - For door weight : 21?–?40 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Running gear guided by : Ball bearing

  - For door material : wood

  - For door thickness max. : 3/4"

  - Door width max. : Max: 4' 1 3/16"

  - For door thickness min. : 5/8"

  - Door weight max. : 44 lbs.

  - Height adjustable :

  - Length (inch) : 2' 1 19/32"

  - Cabinet version : with thin cabinet top panels

  - Area of application : For 2 doors

  - Note on door weight : We recommend that you adhere to the minimum door weight.

  - Door stopper : Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track

  - Material/finish : Housing: Zinc alloyRunning gear: Zinc alloyGuide: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height ±2 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

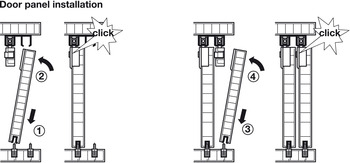

  - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

  - Type of opening : linear

  - Number of doors per system max. : 1 to 3

  - Order reference

  - Please order running and guide tracks separately.

  - Please order the following sets for cabinets with 3 doors: 1 set for 1 door and 1 set for 2 doors.

  - Supplied with:

  - 4 running gears

  - 4 door stoppers with clip-in door stopper

  - 1 door follower

  - 2 inspection supports

  - 2 guides

  - 1 mounting aid
