Hafele 402.33.027 Sliding Door Hardware, Slido Classic 40 IF C, set for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg, Infront, for 2 doors, with soft and self closing mechanism o
Product Information
Description
Hafele 402.33.027 Sliding Door Hardware, Slido Classic 40 IF C, set
for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg, Infront, for 2 doors, with soft and self closing mechanism on one side
Additional items required to complete installation:

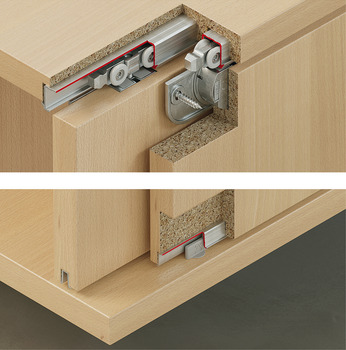

Single top running track, for press fitting and for glue fixing into groove 16 mm or for screw fixing with countersunk head screws 3 mm
Double top running track, for press fitting and for glue fixing into groove 16 mm or for screw fixing with countersunk head screws 3.5 mm, for door thickness 19 mm
Single top running track, for screw fixing with countersunk head screws 3.5 mm
Double top running track, for screw fixing with countersunk head screws 3.5 mm, for door thickness 19 mm

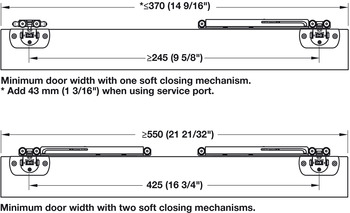

Single bottom guide track, with harpoon-type flange, for press fitting and glue fixing into groove 6 mmFor 2 doors Version : With soft and self closing mechanism on one side, 40 kg Door width : ‰¥370 mm with soft closing mechanism on one side

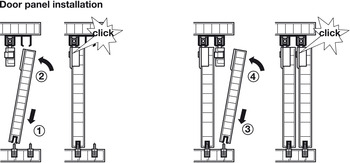

‰¥550 mm with soft closing mechanism on both sidesDoor thickness : (5/8"-3/4") 16-19 mm Door stopper : Top clip-in door stopper or soft and self closing mechanism, for sliding into running track Running gear : Top running, 4 rollers Running gear guided by : Ball bearing mounted roller: Plastic, axle: Steel Adjustment : Height ±2 mm on running gear using adjusting wheel Installation : Housing for screw fixing, running gear without tools (quick fixing system), guide for press fitting into drill hole Material : Housing and running gear: Zinc alloy
guide: PlasticSupplied with : 4 running gears (2 with soft and self closing mechanism)
4 door stoppers (2 with clip-in door stopper/2 for soft and self closing mechanism)
1 door follower
2 guides
1 mounting aid
Optional items:
Flathead Screw, Slido Classic
Planofit straightening fittingCatalog Pages
