Hafele 402.33.028 Slido F-Line21 40C Fitting Set, for 2 doors, 4 soft closing mechansims (1 kit), 40233028, 402-33-028Zoom

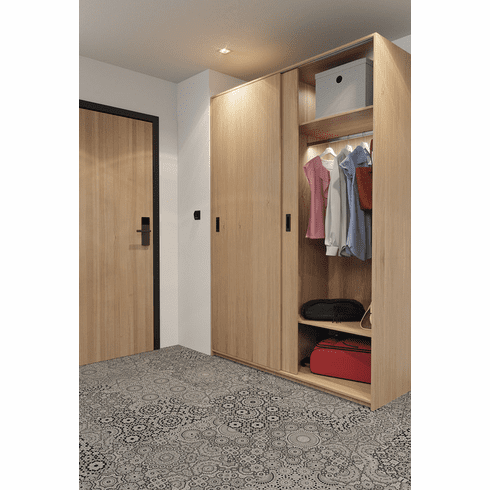

Hafele 402.33.028 Sliding Door Hardware, Slido Classic 40 IF C, set for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg, Infront, for 2 door, with soft and self closing mechanism on

$274.67$343.34You Save: $68.67 (20%)
Item# Hafele-402.33.028
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 402.33.028

    Product Title: Sliding Door Hardware, Slido F-Line21 40C, set, for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg, Infront, for 2 door, with soft and self closing mechanism on both sides

    Category: Sliding Door Hardware, Slido F-Line21 40C, set, for thin cabinet top panels, for wooden sliding doors, with soft closing mechanism (optional), for door weight up to 40 kg

    Item Details …

    -     Number of doors : 2.00

    - For door thickness : 16?–?19 mm

    - For door weight : 21?–?40 kg

    - Running position : Top

    - Number of rollers : 4.00

    - Running gear guided by : Ball bearing

    - For door material : wood

    - For door thickness max. : 3/4"

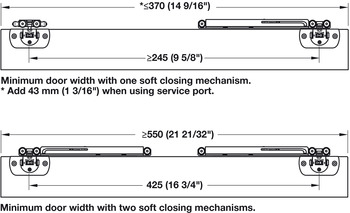

    - Door width max. : Max: 4' 1 3/16"

    - For door thickness min. : 5/8"

    - Door weight max. : 44 lbs.

    - Height adjustable :

    - Length (inch) : 2' 1 19/32"

    - Cabinet version : with thin cabinet top panels

    - Area of application : For 2 doors

    - Note on door weight : We recommend that you adhere to the minimum door weight.

    - Door stopper : Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track

    - Material/finish : Housing: Zinc alloyRunning gear: Zinc alloyGuide: PlasticRollers: PlasticAxis: Steel

    - Adjustment facility : Height ±2 mm on running gear using adjusting wheel

    - Door adjustment via : adjusting wheel

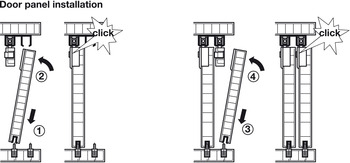

    - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

    - Type of opening : linear

    - Number of doors per system max. : 1 to 3

    - Order reference

    - Please order running and guide tracks separately.

    - Please order the following sets for cabinets with 3 doors: 1 set for 1 door and 1 set for 2 doors.

    - Supplied with:

    - 4 running gears with soft and self closing mechanism

    - 4 door stoppers for soft and self closing mechanism

    - 1 door follower

    - 2 guides

    - 1 mounting aid

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Single running track, For Slido F-Line21 (choose one):
    • for Slido Classic IF/MF/VF, Slido Design IF, mill, 2.5 m length
      for Slido Classic IF/MF/VF, Slido Design IF, mill, 3.5 m length      		402.33.642
      402.33.643      		Click to order
      Click to order


    Double Top Running Track, Top, for press fitting and glue fixing (choose one):


    Single Top Running Track, For Slido F-Line21 (choose one):
    • for Häfele Slido F-Line21, 8' 2 7/16"
      for Häfele Slido F-Line21, silver colored anodized, length: 3,500 mm, aluminum      		402.30.642
      402.30.643      		Click to order
      Click to order


    Double Top Running Track, For Slido F-Line21 (choose one):


    Lower Guide Channel, Bottom, with harpoon-type flanges, for press fitting and glue fixing (choose one):
    • for Slido Classic IF/MF/VF, Slido Design IF, Length: 8' 2 7/16"
      for Slido Classic IF/MF/VF, Slido Design IF, Length: 11’ 5 13/16”      		402.30.802
      402.30.803      		Click to order
      Click to order


    Optional Accessories:

    • Door and Panel Straightener, Set, for wooden doors
    • Flathead screw, Slido Classic

  • Brand PDF Catalogs
