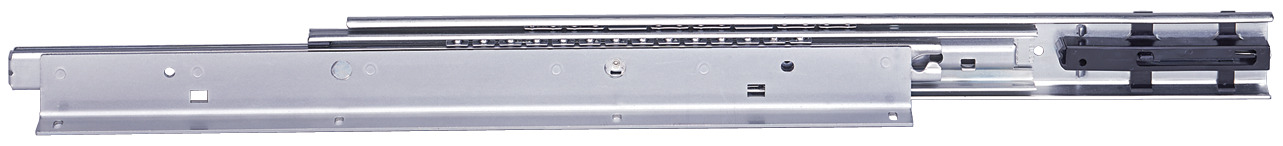

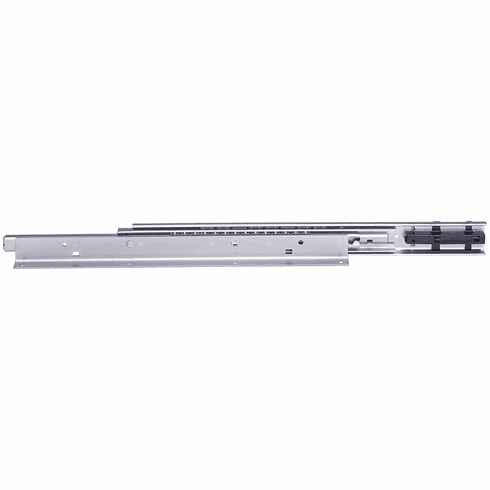

Hafele 420.86.967 Accuride 3600-200 Side Mounted Slide, Full Extension, 175 lbs Weight Capacity 22"

Product Information

• Description

  Manufacturer: Hafele
  Item: 420.86.967

  Product Title: Accuride 3600-200 Side Mounted Slide, Full Extension, 175 lbs Weight Capacity, 22"

  Category: Accuride 3600-200 Side Mounted Slide, Full Extension, 175 lbs Weight Capacity, 22"

  Item Details …

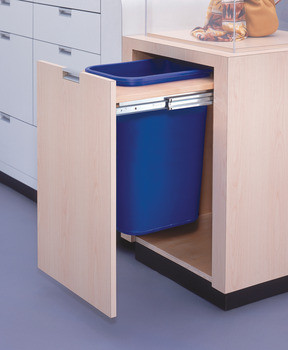

  - Ideal for recycling bins or pantry pull-outs

  - 2 1/2” self-closing action

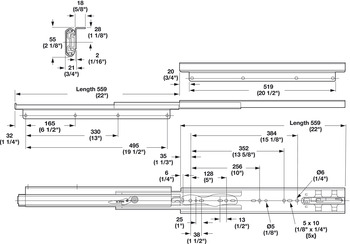

  - Installation length : 559.00 mm

  - Installation length : 22"

  - Extension length : 559.00 mm

  - Load bearing capacity : 80.00 kg

  - Load bearing capacity : Per pair: 175 lbs

  - Mounting : Side-mounted

  - Version : Lever disconnect

  - Model : C3600-200

  - Type of pull out : Full extension

  - Area of application : Ideal for recycling bins or pantry pull-outsFor drawers up to 508 mm (20") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

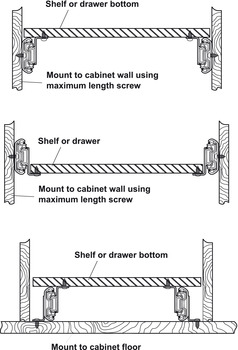

  - Installation : Side-mounted

  - Load bearing capacity per pair : 80.00 kg

  - Supplied with:

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3600-200 Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.114



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.77-8.78.pdf

  Hafele 420.86.967, 420-86-967, 42086967, 420.86
