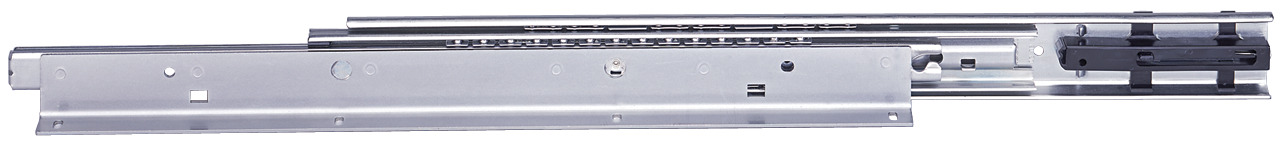

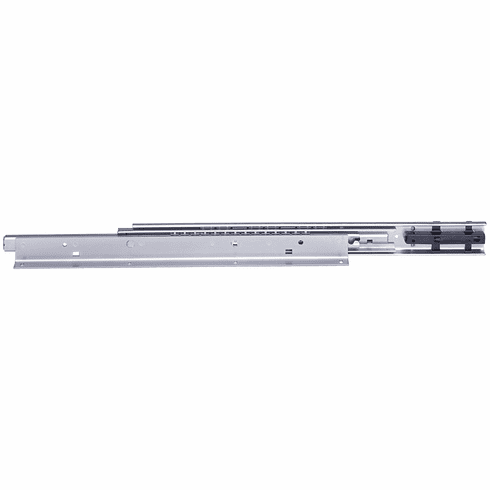

Hafele 420.86.968 Accuride 3600-201 Top/Bottom Mounted Slide, Full Extension; 175 lbs Weight Capacity 22"

Product Information

• Description

  Manufacturer: Hafele
  Item: 420.86.968

  Product Title: Accuride 3600-201 Top/Bottom Mounted Slide, Full Extension; 175 lbs Weight Capacity, 22"

  Category: Accuride 3600-201 Top/Bottom Mounted Slide, Full Extension; 175 lbs Weight Capacity, 22"

  Item Details …

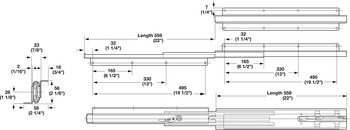

  - Installation length : 559.00 mm

  - Installation length : 22"

  - Extension length : 559.00 mm

  - Load bearing capacity : 80.00 kg

  - Load bearing capacity : Per pair: 175 lbs

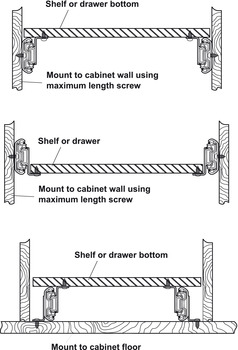

  - Mounting : Fixed bottom and top mounting

  - Version : Lever disconnect

  - Color/finish : Zinc

  - Model : C3600-201

  - Type of pull out : Full extension

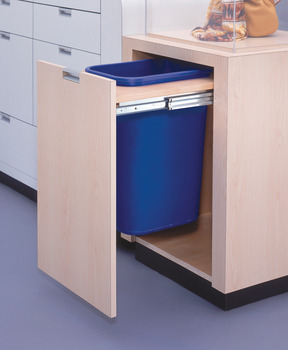

  - Area of application : Ideal for recycling bins or pantry pull-outsFor drawers up to 406 mm (16") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Fixed bottom and top mounting

  - Load bearing capacity per pair : 80.00 kg

  - Supplied with:

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3600-201 Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.115



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.77-8.78.pdf

  Hafele 420.86.968, 420-86-968, 42086968, 420.86


  Specifications/Hafele Catalog - Page# FC8.62: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
