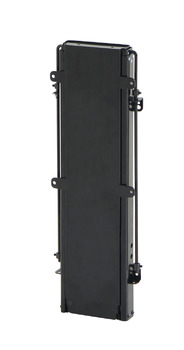

Hafele 421.68.510 Motorized TV Lift, for TV's/Monitors up to 40"/25 lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.68.510

  Product Title: Motorized TV Lift, for TV's/Monitors up to 40"/25 lbs,

  Category: Motorized TV Lift, for TV's/Monitors up to 40"/25 lbs,

  Item Details …

  - Intrusive features, which makes this lift perfect in environments where the lift is visible from the back side

  - The compact design is perfect for light-duty use applications in end-of-bed units, kitchen cabinets, conference tables, desks and other types of furniture where space is limited.

  - With a build-in height of 19 5/8" and a thickness of only 2", the lift fits perfectly in tight spaces. It has a stroke of approximately 23 1/2" and can accommodate TVs up to 40" diagonal.

  - The unit features a finished back with no visible screw holes or mechanical features, making it an appealing choice for applications where the lift will be seen from behind.

  - Each lift comes with anti-squeeze technology that stops all motion upon encountering an object.

  - The lift comes with an RF remote and a rocker switch for manual operation.

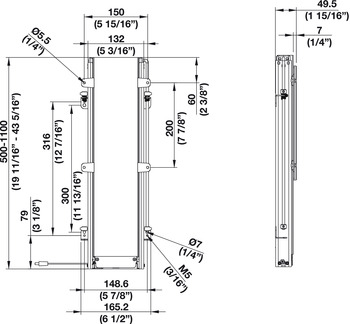

  - Height : 500.00 mm

  - Width : 150.00 mm

  - Depth : 49.50 mm

  - Load bearing capacity : 25 lbs

  - Application : For installation in furniture

  - Material : Steel

  - Color/finish : Black, powder coated

  - VESA standard : 100 x 100 mm, 200 x 100 mm, 200 x 200 mm

  - Supplied with:

  - Mounting brackets

  - Radio frequency remote

  - Rocker switch

  - Power supply

• Data Sheet

  Detailed Data Sheet

• Product Resources

  421.68.443 and 421.68.444 Flat Panel TV Lift Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.70



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.41-4.44.pdf
