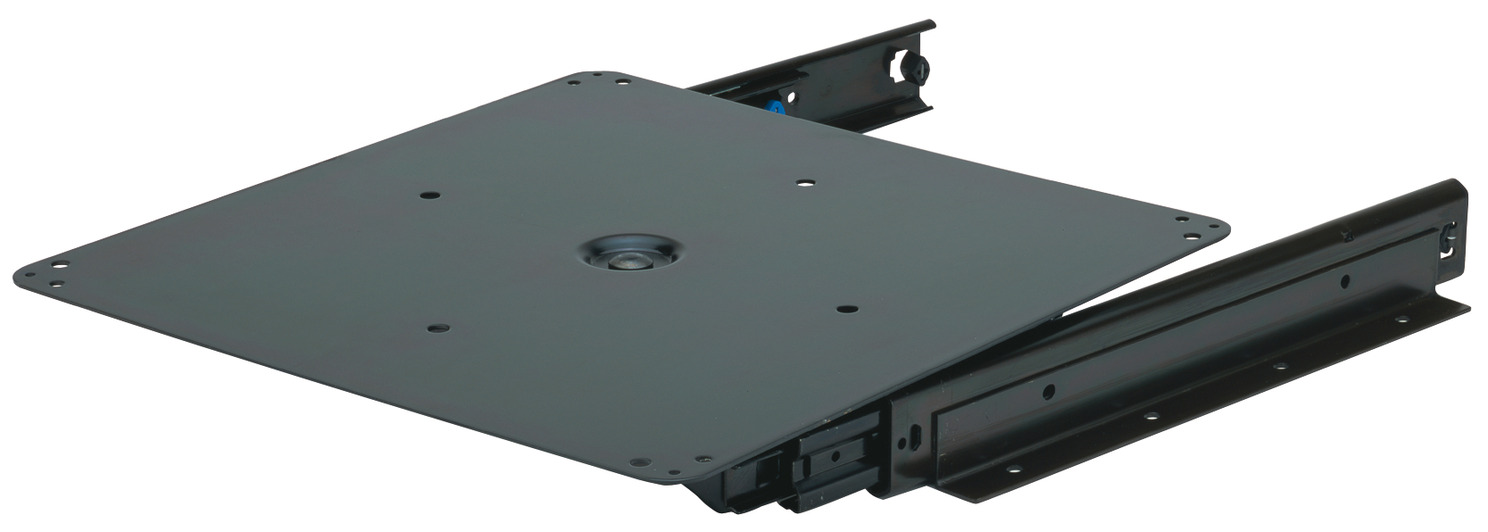

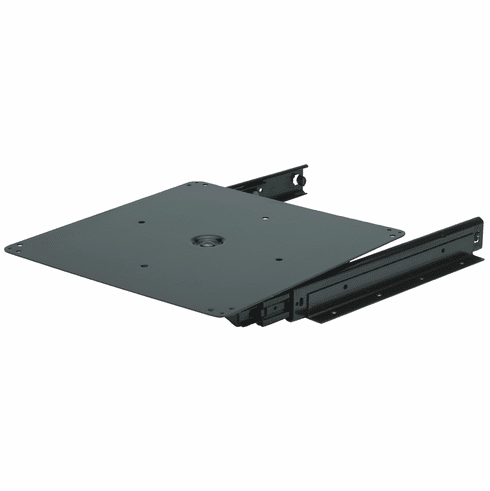

Hafele 423.91.300 Full Extension TV Swivel, with 16" Square Mounting Plate Accuride, CB 3620-258

Product Information

• Description

  Manufacturer: Hafele
  Item: 423.91.300

  Product Title: Full Extension TV Swivel, with 16" Square Mounting Plate, Accuride, CB 3620-258, Installation length 394 mm, extension length 356 mm

  Category: Full Extension TV Swivel, with 16" Square Mounting Plate, Accuride, CB 3620-258, Installation length 394 mm, extension length 356 mm

  Item Details …

  - Designed to support large televisions with ease

  - Sturdy support brackets provide an extraordinary degree of stability, even at maximum extension

  - Silenced stops, in and out

  - Color/finish : Black

  - Height (inch) : 2 7/16"

  - Travel : 14"

  - Area of application : TV's up to 36" diagonal max

  - Version : Steel ball bearingsHold-in detent

  - Material : Frame/Plate: Steel, zinc-platedBall bearings: Steel

  - Adjustment facility : Swivelling range 360 °

  - Extension length : 356.00 mm

  - Installation length min. : 394.00 mm

  - Load bearing capacity : 102.00 kg

  - Load bearing capacity : Including mounting shelf: 225 lbs

  - Load bearing capacity information : Max. including shelf

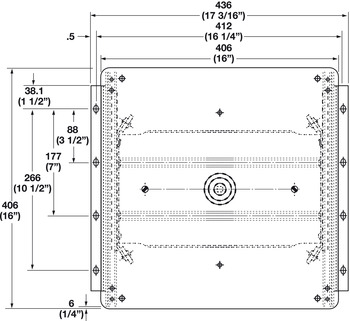

  - Installation : 16” square mounting plate with support rollers mounted underneath reduces unwanted rockingBracket, slide members rest on the cabinet

  - Height : 62.00 mm

  - Swivelling range : 360.00 °

  - Supplied with:

  - Mounting hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.69



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.36-4.37.pdf
