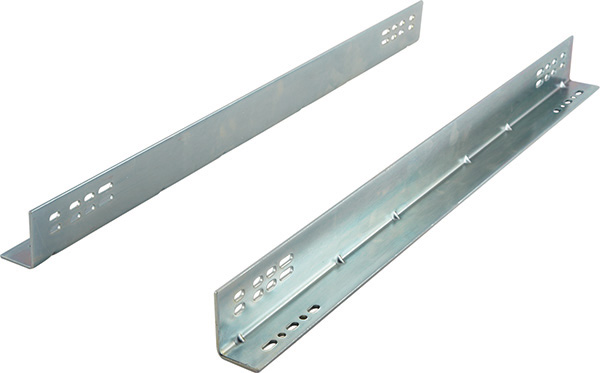

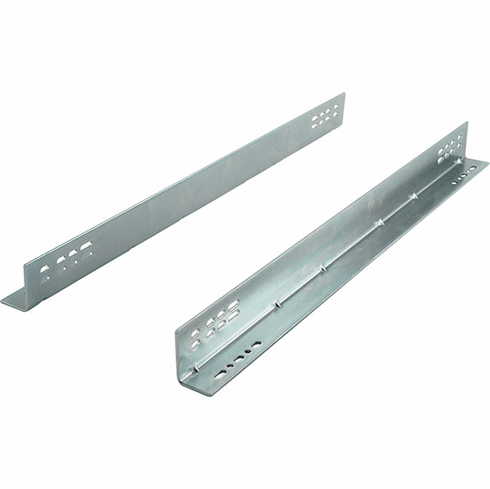

Hafele 422.10.009 Bracket, for 9301 Accuride, For 28" side length, model 4180-0474-XE

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.10.009

  Product Title: Bracket, for 9301, Accuride, For 28" side length, model 4180-0474-XE

  Category: Bracket, for 9301, Accuride

  Item Details �

  - Material : Steel

  - Color/finish : Zinc plated

  - Version : Accuride 9301: For left and right hand use, Accuride 9308: Locking in extended and in closed position, lever operatedAccuride 9301 and Accuride 9308 are compatiblethe use on worktop platforms with access for persons is not permitted

  - Installation : At drawer and shelf, side mountedAccuride 9301: Additionally on shelf, surface mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.107



• Specifications



  Please contact us for more information about this product
