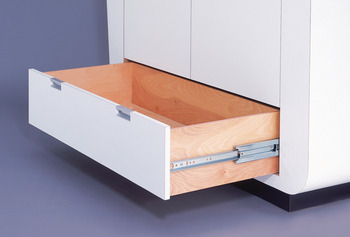

Hafele 422.10.620 Accuride 9301E Heavy Duty Non-Disconnect Mounted Slide, Full Extension; 600 lbs Weight Capacity 10"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.10.620

  Product Title: Accuride 9301E Heavy Duty Non-Disconnect Mounted Slide, Full Extension; 600 lbs Weight Capacity, 10"

  Category: Accuride 9301E Heavy Duty Non-Disconnect Mounted Slide, Full Extension; 600 lbs Weight Capacity,

  Item Details …

  - Extra heavy duty

  - The 9300 E slide family has been enhanced to deliver a payload of up to 600 lbs

  - Reduced migration and smoother travel

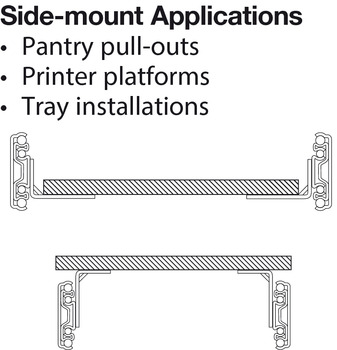

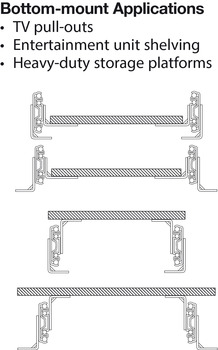

  - Mounting : Side/bottom mounted

  - Version : Accuride 9301: For left and right hand use, Accuride 9308: Locking in extended and in closed position, lever operatedAccuride 9301 and Accuride 9308 are compatiblethe use on worktop platforms with access for persons is not permitted

  - Color/finish : Zinc-plated

  - Model : 9301

  - Type of pull out : Full extension

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side/bottom mounted

  - Supplied with:

  - Packing: 4

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.107



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
