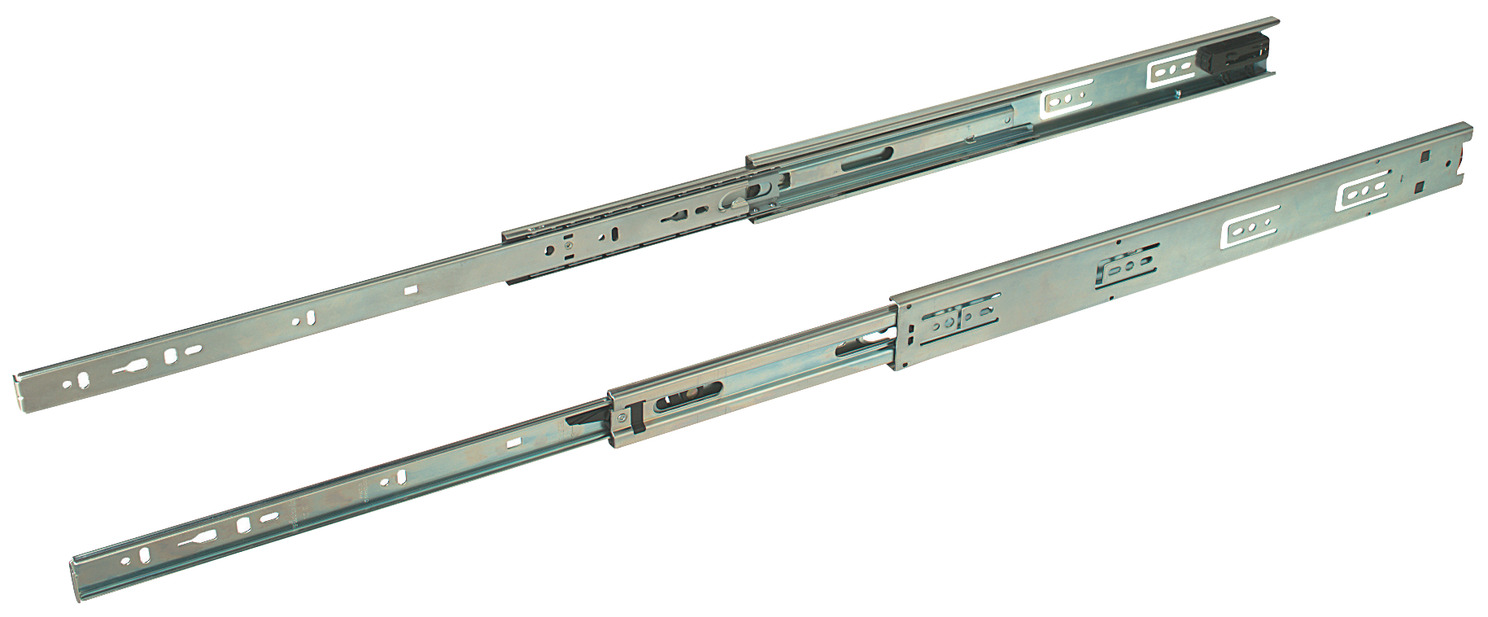

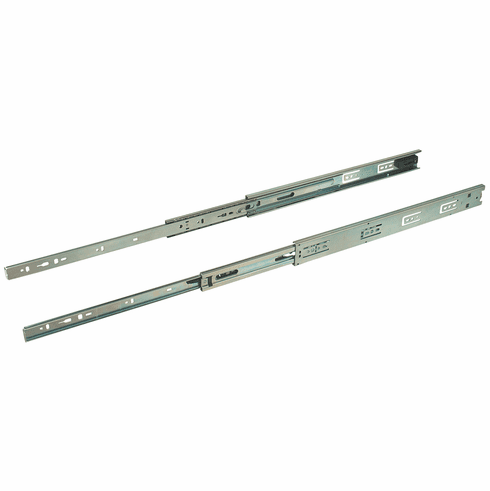

Hafele 422.97.960 Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Zinc, 24"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.97.960

  Product Title: Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, Zinc, 24"

  Category: Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

  - Heavy duty hold-in detent

  - Bounce back is eliminated

  - Keeps drawer front aligned

  - Self-closing with a pull force x 2 of standard 3832SC slide

  - Features low profile for shallw drawers

  - Lever disconnect

  - For optimal performance make drawers 1 1/16” (27 mm) less than cabinet opening

  - Load bearing capacity : 100 lbs

  - Mounting : Side mounted

  - Version : TelescopicHeavy dutyFeatures low profile for shallow drawersLever disconnect

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

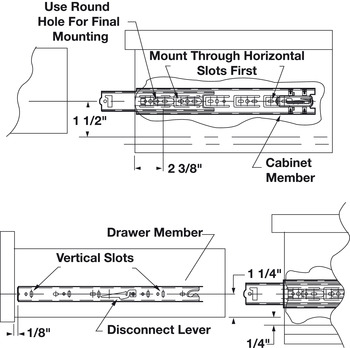

  - Installation : For optimal performance make drawers 1 1/16” (27 mm) less than cabinet opening

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.91



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.97.960, 422-97-960, 42297960, 422.97


  Specifications/Hafele Catalog - Page# FC8.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
  • Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides
