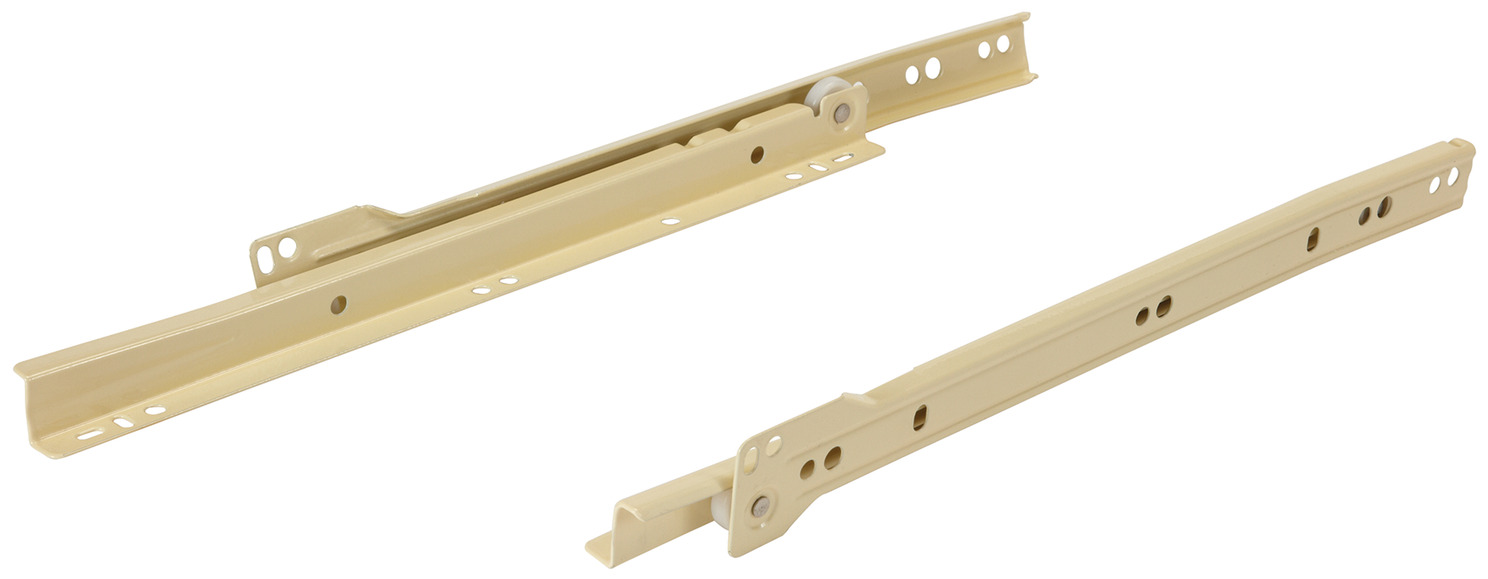

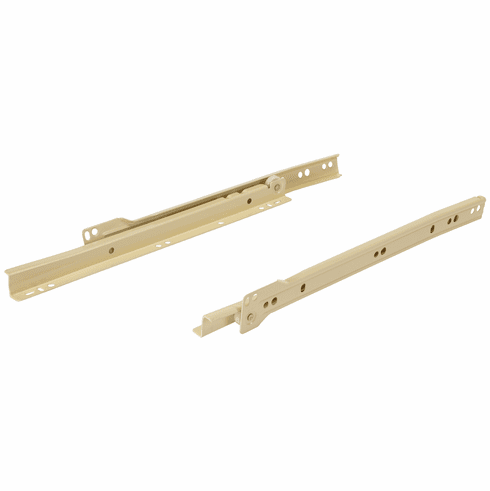

Hafele 423.37.050 Epoxy Coated Bottom Mounted Slide, 3/4 Extension, Self-Closing, 100 lbs Complete Set, Beige, 20"

Product Information

• Description

  Manufacturer: Hafele
  Item: 423.37.050

  Product Title: Epoxy Coated Bottom Mounted Slide, 3/4 Extension, Self-Closing, 100 lbs, Complete Set, Beige, 20"

  Category: Epoxy Coated Bottom Mounted Slide, 3/4 Extension, Self-Closing, 100 lbs, Complete Set, Beige, 20"

  Item Details �

  - Load bearing capacity : 56.00 kg

  - Load bearing capacity : Dynamic weight capacity: max. 100 lbs/pair; Static weight capacity: max. 125 lbs/pair

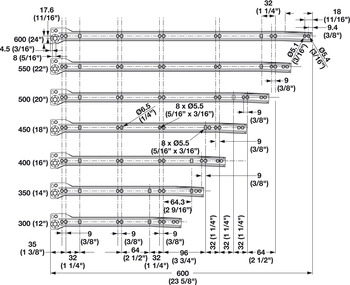

  - Installation length : 500.00 mm

  - Installation dim. : 20"

  - Sliding Extension : Single extension

  - Version : 4 friction bearing-mounted rollers with washer bearings

  - Material : Steel

  - Color/finish : beige RAL 1015, Powder-Coated

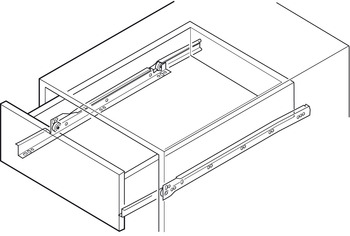

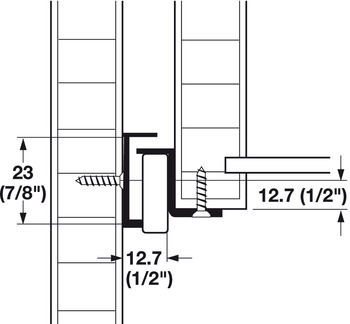

  - Installation : Bottom mounted

  - Supplied with:

  - Packed in complete sets.

• Data Sheet

  Detailed Data Sheet

• Specifications

  Hafele 423.37.050, 423-37-050, 42337050, 423.37


  Specifications/Hafele Catalog - Page# FC8.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Undercut Flat Head Screw, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Spax Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
