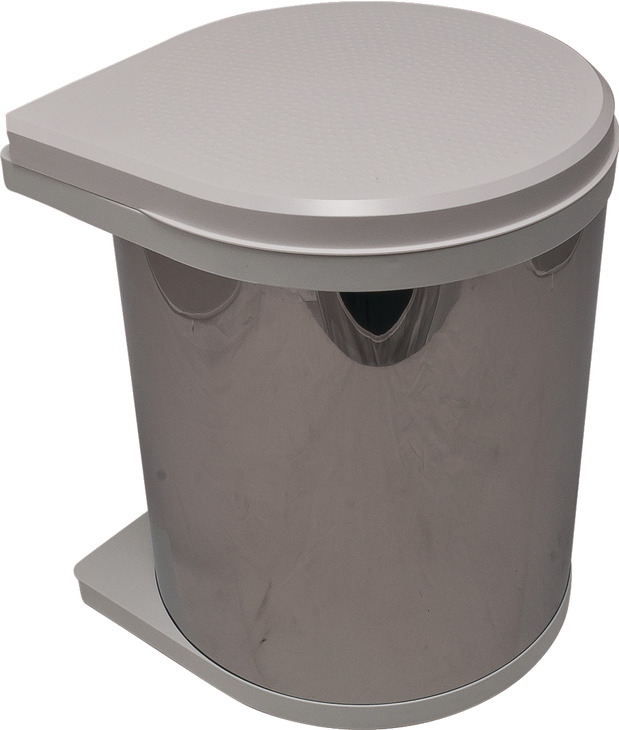

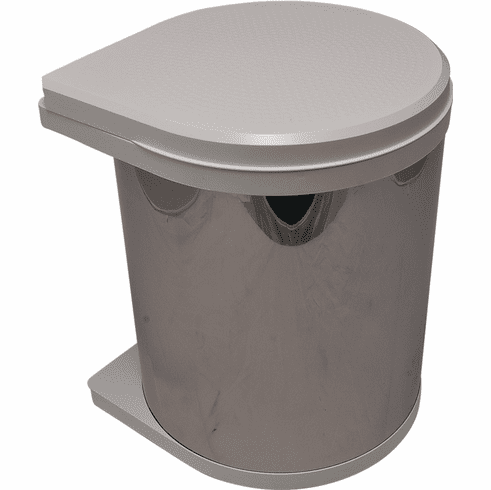

Hafele 502.12.023 Side Panel/Door Mounted Waste Bin, Side Panel/Door Mounted Housing: stainless steel, polished; Lid: white

Product Information

• Description

  Manufacturer: Hafele
  Item: 502.12.023

  Product Title: Side Panel/Door Mounted Waste Bin, Side Panel/Door Mounted, Installation behind hinged doors, Housing: stainless steel, polished; Lid: white

  Category: Side Panel/Door Mounted Waste Bin, Side Panel/Door Mounted, Installation behind hinged doors

  Item Details …

  - Features lid in the cabinet, as the door is opened the lid tilts automatically

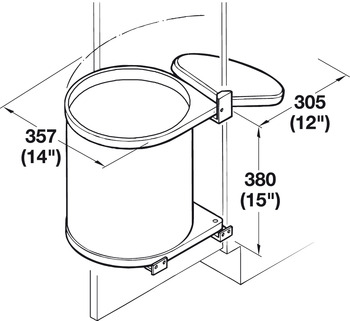

  - Installation width : 14"

  - Installation height : 455.00 mm

  - Installation height : 15"

  - Width : 290.00 mm

  - Depth : 304.00 mm

  - Height : 365.00 mm

  - For cabinet width : Min: 15 3/4"

  - Installation depth min. (inches) : 12"

  - Mounting location : Installation behind hinged doors, For screw fixing to side panel and cabinet door

  - Mounting : Can be mounted for left or right hand use

  - Installation : Can be mounted for left or right hand use

  - Capacity : 15.00 l

  - Capacity : 4 gal/16 qt.

  - For cabinet width min. : 400.00 mm

  - Supplied with:

  - Mounting instructions

  - Hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.48



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.36-3.37.pdf

  Hafele 502.12.023, 502-12-023, 50212023, 502.12


  Specifications/Hafele Catalog - Page# FC3.33: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
