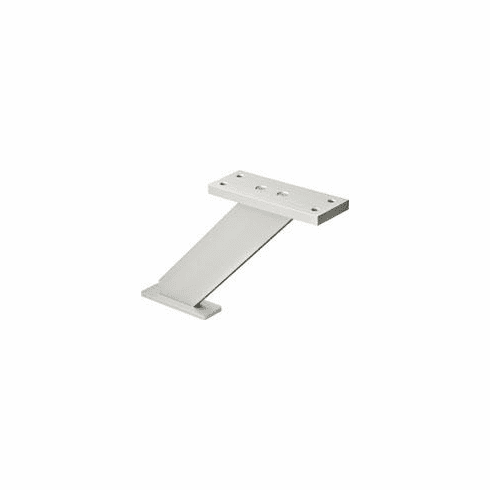

Hafele 505.14.926 Countertop Support, Aluminium, inclined, Z shape height: 170 mm, length: 270 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 505.14.926

  Product Title: Countertop Support, Aluminum, inclined, Z shape, Height: 170 mm (6 5/8")

  Category: Countertop Support, Aluminum, inclined, Z shape, Height: 170 mm (6 5/8")

  Item Details …

  - Material : Aluminum

  - Color/finish : Silver colored, Anodized E6/EV1, Matt

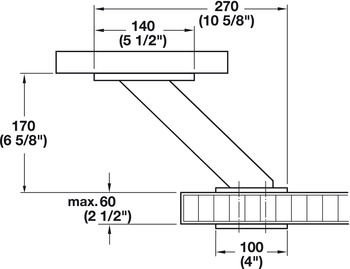

  - Length : 270.00 mm

  - Height : 170.00 mm

  - Height (inch) : 23 - 24 1/2"

  - Installation : For screw fixing

  - Area of application : for mounting on worktops or furniture

  - Version : inclinedZ shape

  - Load bearing capacity : 25.00 kg

  - Load bearing capacity : 55 lbs

  - Supplied with:

  - With fixing material and drilling jig

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Supplied with Specs

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.139



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.93-3.95.pdf

  Hafele 505.14.926, 505-14-926, 50514926, 505.14


  Specifications/Hafele Catalog - Page# FC3.86: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
