Hafele 630.45.210 Hand Crank Column Set, AdjusTable System Conversion Hand Crank Table Silver RAL 9006
, 63045210, 630-45-210 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 630.45.210
Product Title: Hand Crank Column Set, AdjusTable System Conversion Hand Crank Table, Silver RAL 9006
Category: Hand Crank Column Set, AdjusTable System® Conversion Hand Crank Table,
Item Details …
- A flexible component based system for constructing straight C-Frame style table bases
- Components simply bolt together
- Crank can be installed in either R/H or L/H side bases
- Cranks per inch: 6
- Stroke: 465 mm (18 1/4ā€¯)
- Material : Steel
- Load bearing capacity : Including work surface
- Length (inch) : 25 7/8" - 44 1/4", not including top thickness
- Load bearing capacity : 113.00 kg
- Note on load bearing capacity : Including work surface
- Supplied with:

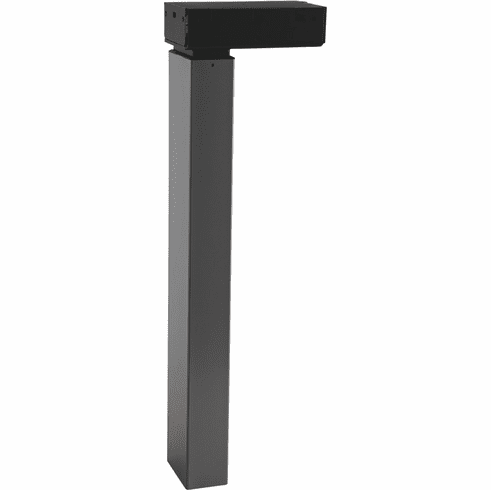

- L/H and R/H Adjustable columns

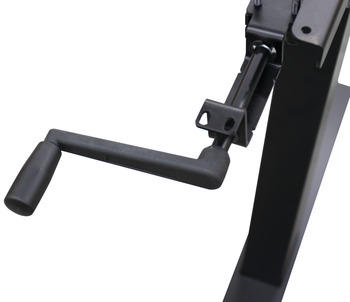

- Hand crank
- Hardware pack
- Levelers with M8 threads
Additional Information …

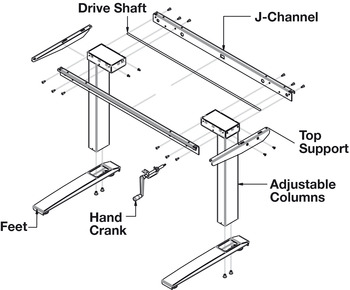

Weight rating is based on:An evenly distributed load over table topTable base constructed using prescribed components; columns, feet, top supports and J-channelsData Sheet
