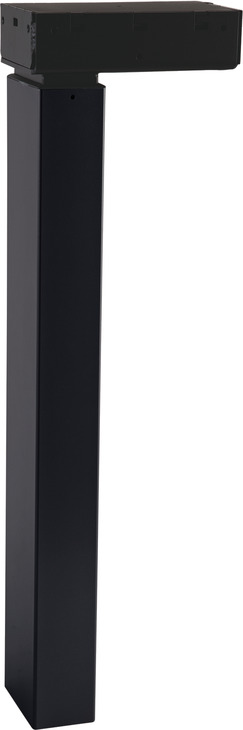

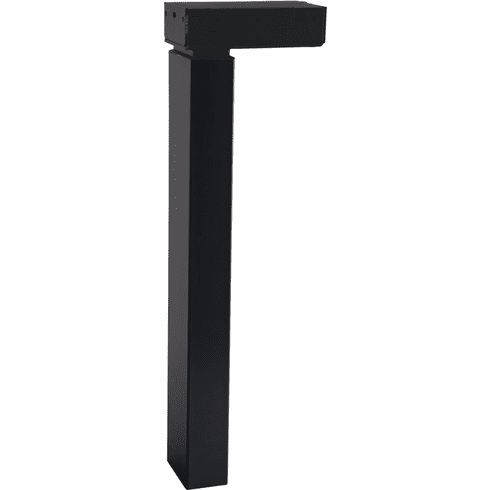

Hafele 630.45.310 Hand Crank Column Set, AdjusTable System Conversion Hand Crank Table Black RAL 9011

Product Information

• Description

  Manufacturer: Hafele
  Item: 630.45.310

  Product Title: Hand Crank Column Set, AdjusTable System Conversion Hand Crank Table, Black RAL 9011

  Category: Hand Crank Column Set, AdjusTable System® Conversion Hand Crank Table,

  Item Details …

  - A flexible component based system for constructing straight C-Frame style table bases

  - Components simply bolt together

  - Crank can be installed in either R/H or L/H side bases

  - Cranks per inch: 6

  - Stroke: 465 mm (18 1/4ā€¯)

  - Material : Steel

  - Load bearing capacity : Including work surface

  - Length (inch) : 25 7/8" - 44 1/4", not including top thickness

  - Load bearing capacity : 113.00 kg

  - Note on load bearing capacity : Including work surface

  - Supplied with:

  - L/H and R/H Adjustable columns

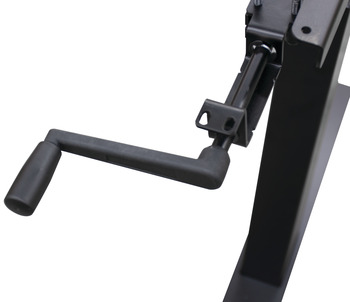

  - Hand crank

  - Hardware pack

  - Levelers with M8 threads


  Additional Information …

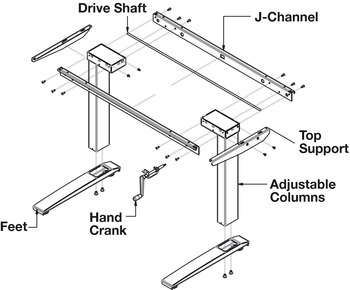

  Weight rating is based on:An evenly distributed load over table topTable base constructed using prescribed components; columns, feet, top supports and J-channels

• Data Sheet

  Detailed Data Sheet

• Product Resources

  ATS Conversion Mounting Instructions



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.48-6.48.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Feet and Top Support Set, for AdjusTable System Conversion Table
  • J-Channel and Drive Shaft Set, forAdjusTable System Hand Crank Conversion Table
