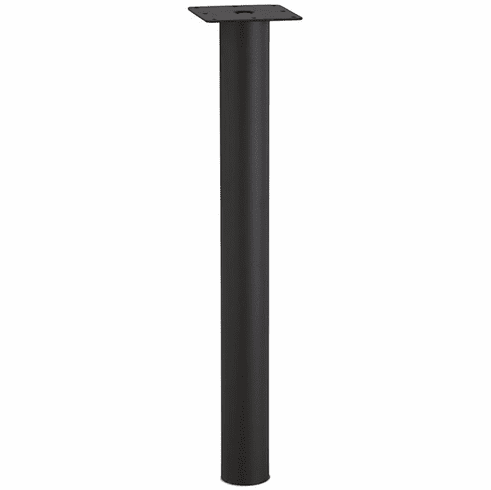

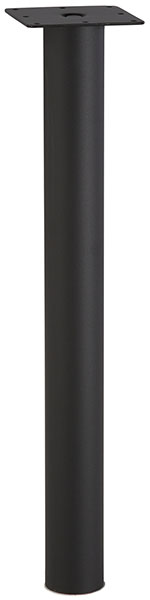

Hafele 635.60.367 E-Leg, for Casters, 60 mm 710 mm (28"), Black textured

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.60.367

  Product Title: E-Leg, for Casters, Ø60 mm, 710 mm (28"), Black textured

  Category: E-Leg, for Casters, Ø60 mm, 710 mm (28")

  Item Details …

  - Height includes mounting plate and casters

  - Area of application : For Ø80 mm casters

  - Height (inch) : 28"

  - Diameter : 60.00 mm

  - Load bearing capacity : Static load rating: 220 lbs

  - Load bearing capacity information : 100 kg per leg

  - Installation : Steel square mounting plate with M10 bolt, leg screws into mounting plate

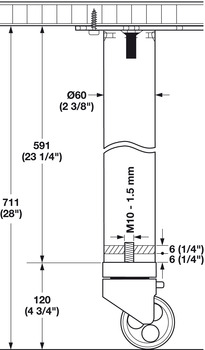

  - Installation reference : Total height after casters are added = 711 mm

  - Order reference

  - Castors to be ordered separately

  - Supplied with:

  - 4 legs

  - 4 mounting plates

  - Screws #9 x 1”

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.39



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.29-6.35.pdf

  Hafele 635.60.367, 635-60-367, 63560367, 635.60


  Specifications/Hafele Catalog - Page# FC6.49: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Swiveling Caster, M10 Stem, with Brake, Load-Bearing Capacity 264 lbs. (choose one):


  • With M10 thread, Black with pierced wheel With M10 thread, Black with solid black wheel With M10 thread, Silver with silver wheel

    661.29.301 661.29.305 661.29.910

    Click to order Click to order Click to order
