Hafele 635.60.386 E-Leg, 60 mm System 705 mm (27 3/4"), Black textured

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.60.386

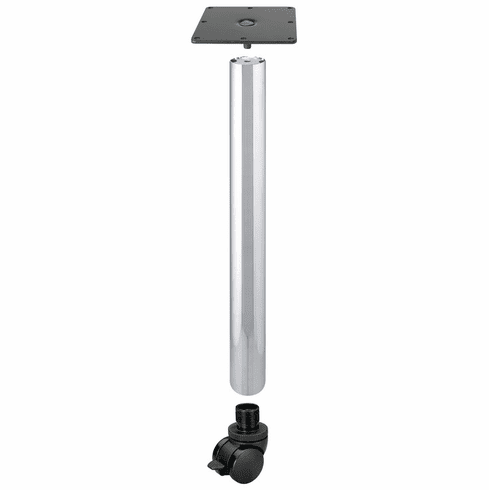

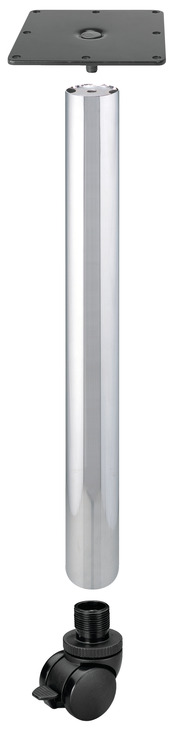

  Product Title: E-Leg, Ø60 mm System, 705 mm (27 3/4"), Black textured

  Category: E-Leg, Ø60 mm System, 705 mm (27 3/4")

  Item Details …

  - Use 2 legs with levelers and 2 legs with casters, for a table which can be “wheel barrowed”

  - Legs come with insert in bottom to accept levelers, spacers and casters - to be ordered separately

  - Area of application : With plastic threaded insert to accept optional casters or levelers

  - Diameter : 60.00 mm

  - Material : Legs: Steel, plated or epoxy-coatedMounting plate: SteelInsert: Plastic

  - Load bearing capacity : Static load rating: 220 lbs per leg

  - Load bearing capacity information : 100 kg per leg

  - Order reference

  - Requires optional levelers, spacers or casters to be ordered separately.

  - Supplied with:

  - 4 Legs

  - 4 Mounting plates

  - Screws #9 x 1”

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.40



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.29-6.35.pdf

  Hafele 635.60.386, 635-60-386, 63560386, 635.60


  Specifications/Hafele Catalog - Page# FC6.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:

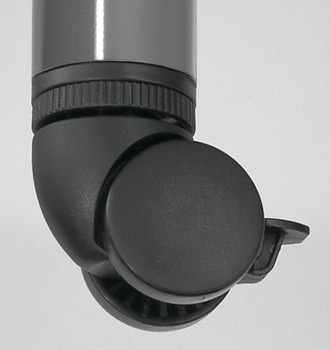

  • Caster With Brake, Ø60 mm System & KOYO Legs
  • Spacer, Ø60 mm, Adjustable KOYO Legs

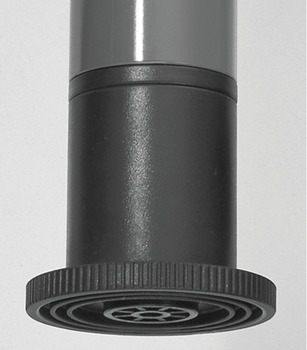

  • Leveler, Ø60 mm System & KOYO Legs
  • Replacement Insert, Ø60 mm System
