Hafele 637.45.295 Adjustable Table Double Column, side mounted, steel, black
Product Information
Description
Manufacturer: Hafele
Item: 637.45.295

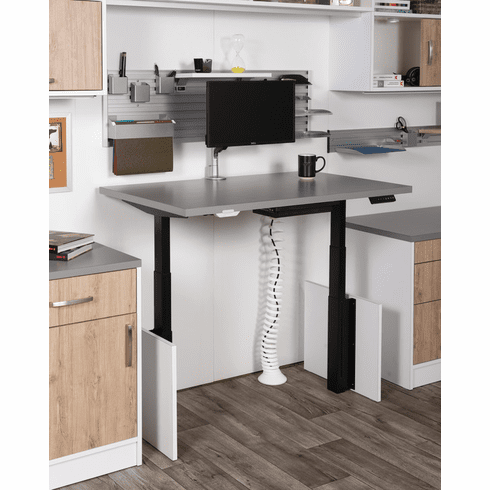

Product Title: Adjustable Side Mounted Double Column Table System, STAR, black
Category: Adjustable Side Mounted Double Column Table System, STAR,
Item Details …
- With an integrated Collision Protection System for safety:
- 1). AMP Draw – If the control box detects that any of the legs receive a spike in amp-draw due to, for example, something hitting the table, the table will reverse direction to avoid damage.
- 2). Gyro Sensor – This internal sensor will detect the following:
- • Sudden change in speed (up or down)
- • Sudden change in the desk angle (up or down)
- • An impact to the worksurface (up or down)
- Stroke: 26”
- Meets BIFMA X5.5 standards
- UL 962 Recognized
- Has an adjustable width support beam for mounting flexibility
- Made in USA
- Version : With 3 stage adjustable columnsWith 4-setting programmable switchAdjustable support channel, width adjusts from (42 1/2"–71") 1080–1803 mm
- Material : Steel
- Travel : 40 mm per second
- Installation : Between 2 side panels or hidden inside a “wood box”Comes with welded-on side brackets for screw or bolt mounting to the panels
- Area of application : Recommended for: Top widths: 48" - 76"Top depths: 24" - 30"
- Height adjustment : 20 7/8” – 46 7/8”, not including top thickness
- Load bearing capacity : 280 lbs including top weight
- Supplied with:
- 2 adjustable columns with welded on mounting brackets
- Top supports and adjustable support channel
- Double port control box
- Programmable switch
- Wiring and assembly hardware
Additional Information …
Make sure column is securely fastened to the panels, through bolts are recommended.Weight rating is based on an evenly distributed load over the tabletop.Data Sheet
