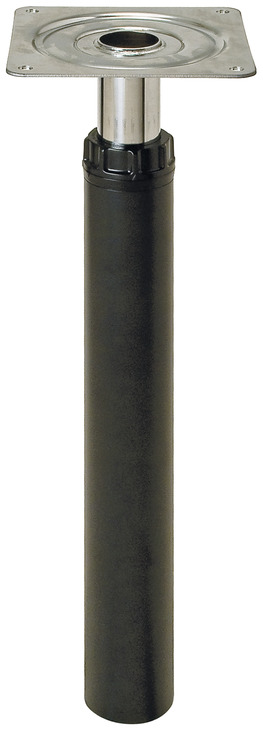

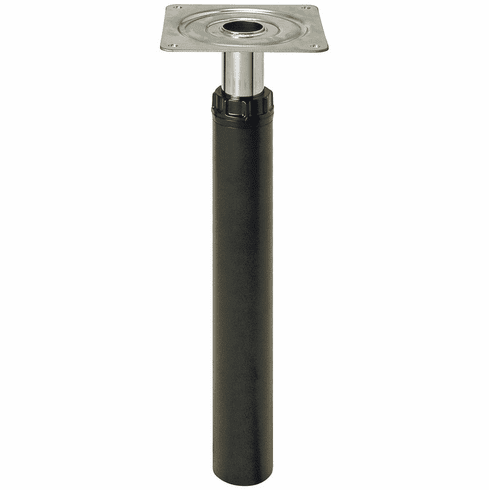

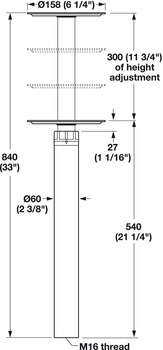

Hafele 638.39.215 Adjustable Column, KOYO Pedestal System Height adjustment range 300 mm (11 3/4"), Polished chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 638.39.215

  Product Title: Adjustable Column, KOYO Pedestal System, Height adjustment range 300 mm (11 3/4"), Polished chrome

  Category: Adjustable Column, KOYO Pedestal System, Height adjustment range 300 mm (11 3/4")

  Item Details …

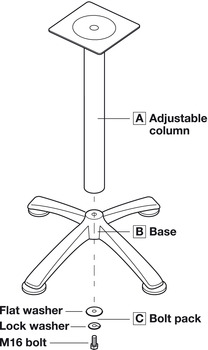

  - Welded M16 nut in bottom of column allows for mounting of pedestal bases using bolt pack

  - Operates on a step by step ratcheting system

  - Includes internal anti-rotation mechanism

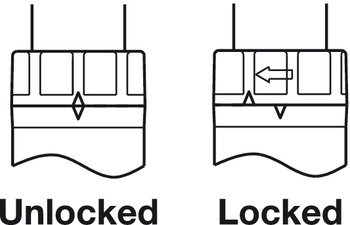

  - Locking ring feature secures column in its adjusted setting when the pedestal is being moved

  - Material : Steel

  - Area of application : Designed for small diameter tops, not to exceed Diameter:711 mm (28”)Bolts directly to floor for speaking pedestals, boats, RVs, etc.

  - Load bearing capacity : Exceeds 500 lbs per leg

  - Order reference

  - Please order bases and attachment bolts separately

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.57



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.46-6.46.pdf

  Hafele 638.39.215, 638-39-215, 63839215, 638.39


  Specifications/Hafele Catalog - Page# FC6.64: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Bolt Pack, KOYO Pedestal System (choose one):


  • M16 bolt & washers

    630.00.001
