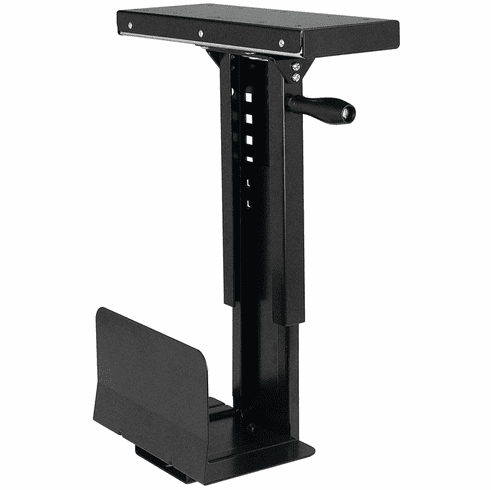

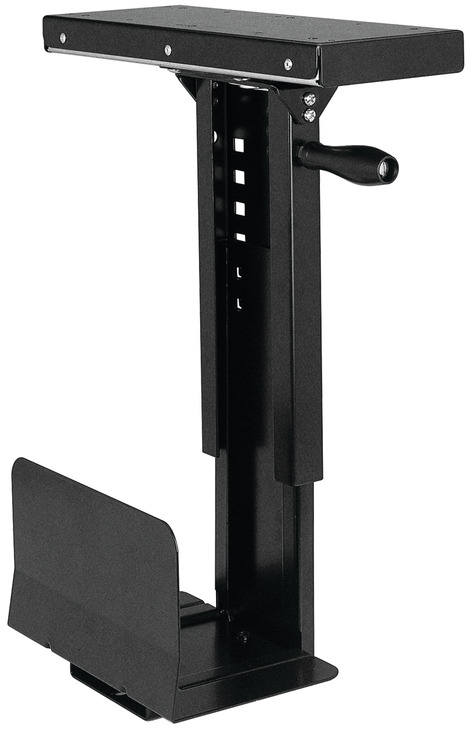

Hafele 639.72.310 CPU Holder, with Swivel and Extension (5 1/2 - 9 1/4") 140 - 235 mm width adjustment

Product Information

• Description

  Manufacturer: Hafele
  Item: 639.72.310

  Product Title: CPU Holder, with Swivel and Extension, (5 1/2 - 9 1/4") 140 - 235 mm width adjustment

  Category: CPU Holder, with Swivel and Extension, (5 1/2 - 9 1/4") 140 - 235 mm width adjustment

  Item Details …

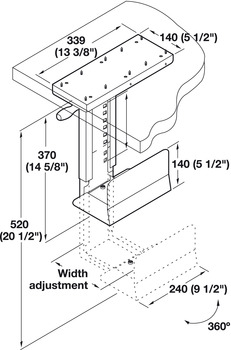

  - Height adjustment: (14 5/8 - 20 1/2”) 371 - 521 mm

  - Width adjustment: (5 1/2 - 9 1/4”) 140 - 235 mm

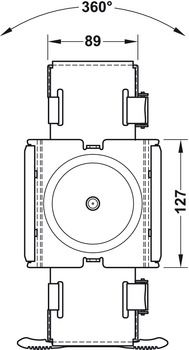

  - 360° swivel provides easy access to connections on the rear of CPU

  - Provides 216 mm (8 1/2”) of travel for easy access to connections on rear of CPU

  - Color/finish : Black, Epoxy-coated

  - Height adjustment : 14 5/8 - 20 1/2”

  - Load bearing capacity : 55 lbs

  - Area of application : For securing a computer, DVD player or video recorder beneath the table top

  - Version : With extending guide track (76 mm)quick-action straps (up to 1,630 mm perimeter) and protective padding

  - Material : Steel

  - Load bearing capacity : 25.00 kg

  - Installation length : 451.00 mm

  - Installation : Screw-on plate for screw fixing beneath table top

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 5.50



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_5.18-5.18.pdf

  Hafele 639.72.310, 639-72-310, 63972310, 639.72


  Specifications/Hafele Catalog - Page# FC5.25: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Office Organization Catalog Return to: All Hafele Catalogs
