Product Information
Description
Manufacturer: Hafele
Item: 639.72.350

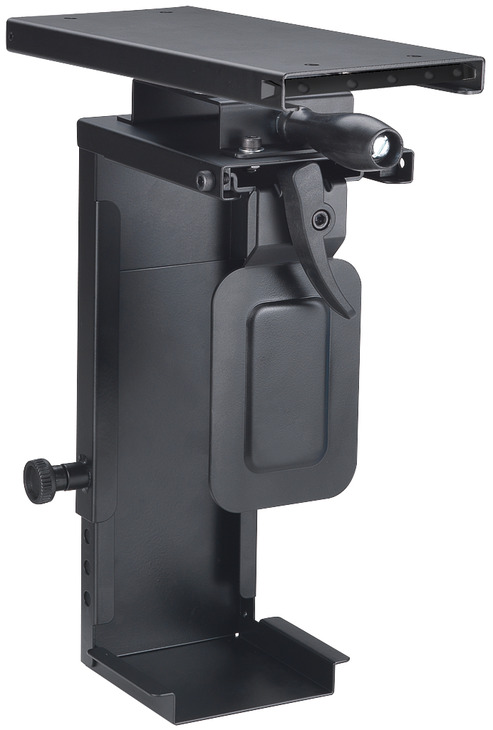

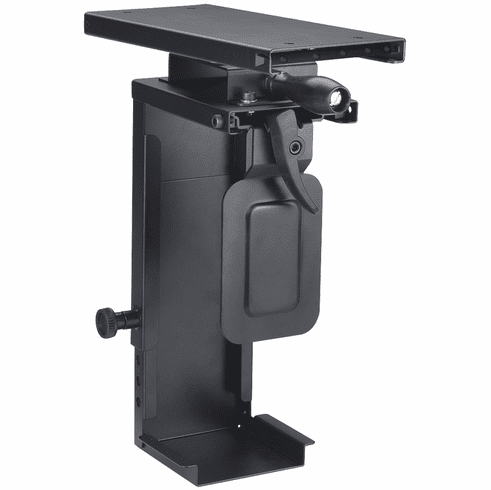

Product Title: CPU Holder, with Swivel and Extension,
Category: CPU Holder, with Swivel and Extension, 639.72.350
Item Details …
- Height adjustment: (8 - 13 7/8â€) 200 - 358 mm
- Width adjustment: (2 - 4") 50 - 100 mm

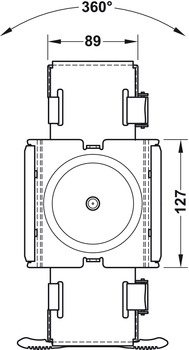

- Swiveling range: 360°
- Innovative lever adjustment for quick and secure width adjustment, custom fit to various CPU sizes
- Quick-release pin for easy height adjustment
- Adjustment range for smaller CPUs
- Color/finish : Black
- Height adjustment : 8 - 13 7/8â€
- Load bearing capacity : 22 lbs
- Extension length : Track travel: 6â€
- Area of application : For securing a computer, DVD player or video recorder beneath the table top
- Version : With extending guide track (76 mm)quick-action straps (up to 1,630 mm perimeter) and protective padding
- Material : Steel
- Load bearing capacity : 10.00 kg
- Installation length : 451.00 mm
- Installation : Screw-on plate for screw fixing beneath table topData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_5.18-5.18.pdfHafele 639.72.350, 639-72-350, 63972350, 639.72 Specifications/Hafele Catalog - Page# FC5.26:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
