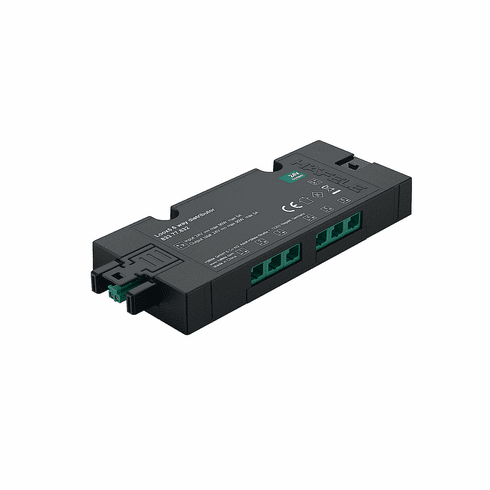

Hafele 833.77.832 LOOX5 6-way distributor 24v
, 83377832, 833-77-832 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 833.77.832
Product Title: 6-Way Distributor, Häfele Loox5, Box to Box without Switching Function, 24 V, 90 W, 4 3/4" x 2" x 5/8"
Category: 6-Way Distributor, Häfele Loox5, Box to Box without Switching Function, 24 V, 90 W, 4 3/4" x 2" x 5/8"
Item Details …
- The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver. Observe maximum wattage!
- Low voltage plug : Loox5 2-pin 24 V box to box
- Input ports : 1 x plug, Loox5 2-pin 24 V box to box
- Connections : 1 x socket, Loox5 2-pin 24 V box to box
- Alternative output ports : 6 x sockets, Loox 2-pin 24 V
- Power rating : 120.00 W
- Voltage : 24.00 V
- Color system : monochrome or MW 2-wire-Technology
- Version : Box to box without switching function
- Material : Plastic
- Color/finish : Black
- Dim. (L x W x H) : 120 x 50 x 16 mm
- Supplied with:
- 1 distributor
Additional Information …
Note max. output power of used driver!Wattage capacity within the scope of UL 1310 (e.g. USA, Canada): 90 WData Sheet
