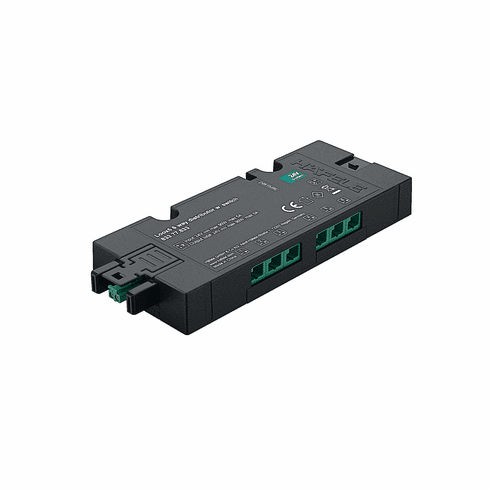

Hafele 833.77.833 LOOX5 6-way distributor with switching function 24v

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.833

  Product Title: 6-Way Distributor, Häfele Loox5, Box to Box with Switching Function, 24 V, 4 3/4" x 2" x 5/8", 90 W

  Category: 6-Way Distributor, Häfele Loox5, Box to Box with Switching Function, 24 V, 4 3/4" x 2" x 5/8"

  Item Details …

  - The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver. Observe maximum wattage!

  - Low voltage plug : Loox5 2-pin 24 V box to box

  - Input ports : 1 x plug, Loox5 2-pin 24 V box to box

  - Connections : 1 x socket, Loox5 2-pin 24 V box to box

  - Connected output ports : 6 x sockets, Loox5 2-pin 24 V

  - Control input ports : 1 x socket, Loox switch

  - Voltage : 24.00 V

  - Color system : monochrome

  - Suitable for : For professional LED control, for monochrome LED lights, For monochrome lights

  - Version : Box to box with switching function

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 120 x 50 x 16 mm

  - Switching function : With switching function

  - Standby power consumption : 0.50 W

  - Supplied with:

  - 1 Distributor incl. fixing material (adhesive tape and screws)


  Additional Information …

  Note max. output power of used driver!Wattage capacity within the scope of UL 1310 (e.g. USA, Canada): 90 W

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LOOX5 6-way distributor

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 256
