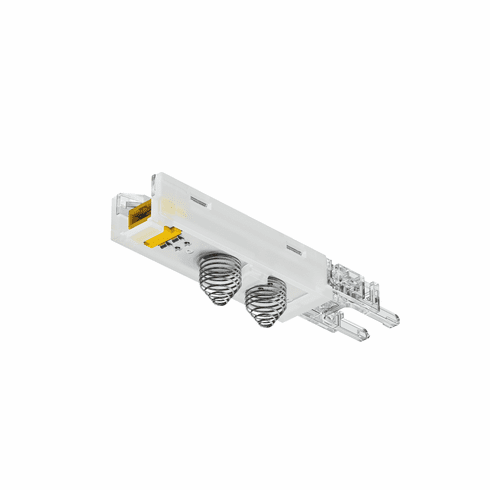

Hafele 833.89.281 LOOX5 Inline Touch Dimmer Switch, 12 v, 60 w, plastic, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.281

  Product Title: Loox5 Inline Dimmer, modular, with memory function, for aluminum profiles, Soft On/Off Switching with Dimming, Voltage 12 V, max. connected wattage 60 W

  Category: Loox5 Inline Dimmer, modular, with memory function, for aluminum profiles, Soft On/Off Switching with Dimming, Voltage 12 V, max. connected wattage 60 W

  Item Details …

  - Switch is concealed under the diffuser

  - Switching contact : with touch

  - Input ports : 1 x socket, Loox5 modular with intervals 2-pin 12 V

  - Connections : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Connected output ports : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Color/finish : opal

  - Low voltage plug : Loox5 2-pin 12 V

  - Switching function : dim (with memory function), On/off soft, touchless

  - Plug of required low voltage cable : Loox5 2-pin 12 V

  - Power rating : 60.00 W

  - Area of application : For monochrome Loox LED strips 8 mm (5/16") in Loox5 aluminum profiles with 11 mm (7/16") internal width

  - Suitable for : Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104, Profile 2101

  - Material : Plastic

  - Installation : For sliding into aluminum profile

  - Installation reference : 70°; Can be used with profiles 1103, 1105, 2102, 2103, 2104

  - Order reference

  - Please order modular lead separately:

  - 12 V/5 A, 2000 mm (78 3/4"): 833.95.830

  - 12 V/5 A, 1000 mm (39 3/8"): 833.95.831

  - 24 V/5 A, 2000 mm (78 3/4"): 833.95.835

  - 24 V/5 A, 1000 mm (39 3/4"): 833.95.836

  - Supplied with:

  - 1 dimmer


  Additional Information …

  Dimming range 5% - 100%Dimming level is retained after switching off

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for inline switch

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 236



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead with Snap-In Connector, Häfele Loox5, modular (choose one):


  • For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V

    833.95.788 833.95.789 833.95.830 833.95.831

    Click to order Click to order Click to order Click to order



  Lead with Snap-In Connector, Häfele Loox5, modular (choose one):


  • For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V

    833.95.788 833.95.789 833.95.830 833.95.831

    Click to order Click to order Click to order Click to order
