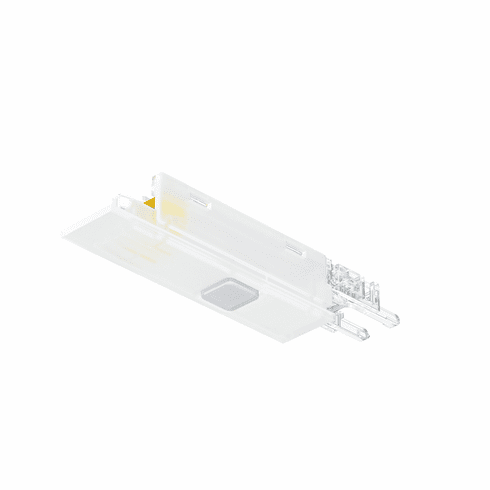

Hafele 833.89.282 LOOX5 Inline Motion Detector Switch, 1 min, 12 v, 60 w, plastic, white (1 piece), 83389282, 833-89-282Zoom

Hafele 833.89.282 LOOX5 Inline Motion Detector Switch, 1 min, 12 v, 60 w, plastic, white

$27.20$34.00You Save: $6.80 (20%)
Item# Hafele-833-89-282
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 833.89.282

    Product Title: Loox5 Motion Detector, for aluminum profile, Häfele Loox5, modular, Automatic On/Off Switching, Voltage 12 V, max. connected wattage 60 W, delay time 1 min

    Category: Loox5 Motion Detector, for aluminum profile, Häfele Loox5, modular, on/off automatically

    Item Details …

    -     Version : With integrated diffuser (opal)

    - Input ports : 1 x socket, Loox5 modular with intervals 2-pin 12 V

    - Connected output ports : 1 x Clip, Loox5 LED strip light 8 mm monochrome

    - Color/finish : opal

    - Low voltage plug : Loox5 2-pin 12 V

    - Switching function : On/off soft, touchless

    - Memory function : No

    - Plug of required low voltage cable : Loox5 2-pin 12 V

    - Power rating : 60.00 W

    - Area of application : For monochrome 8 mm Loox5 LED strip lights in Loox5 aluminum profiles with 11 mm (7/16") internal width

    - Suitable for : Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104

    - Material : Plastic

    - Sensor angle : 80.00 °

    - Vertical sensor bracket : 70.00 °

    - Installation : For sliding into aluminum profile

    - Installation reference : Shorten LED strip light by approx. 50 mm (1 15/16") in relation to the total length of the aluminum profile. Shorten the diffuser by 45.5 mm (1 13/16").

    - Order reference

    - Please order modular lead separately:

    - 12 V/5 A, 2000 mm (78 3/4"): 833.95.830

    - 12 V/5 A, 1000 mm (39 3/8"): 833.95.831

    - 24 V/5 A, 2000 mm (78 3/4"): 833.95.835

    - 24 V/5 A, 1000 mm (39 3/4"): 833.95.836

    - Supplied with:

    - 1 motion detector

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Lead with Snap-In Connector, Häfele Loox5, modular (choose one):
    • For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V
      For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V
      For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V
      For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V      		833.95.788
      833.95.789
      833.95.830
      833.95.831      		Click to order
      Click to order
      Click to order
      Click to order


    Lead with Snap-In Connector, Häfele Loox5, modular (choose one):
    • For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 24V
      For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 24V
      For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 24V      		833.95.791
      833.95.835
      833.95.836      		Click to order
      Click to order
      Click to order


    Lead with Snap-In Connector, Häfele Loox5, modular (choose one):
    • For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V
      For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V
      For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 12V
      For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 12V      		833.95.788
      833.95.789
      833.95.830
      833.95.831      		Click to order
      Click to order
      Click to order
      Click to order


    Lead with Snap-In Connector, Häfele Loox5, modular (choose one):
    • For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 24V
      For modular lights and other modular devices, Cable length: 2 m (78 3/4"), 24V
      For modular lights and other modular devices, Cable length: 1 m (39 3/8"), 24V      		833.95.791
      833.95.835
      833.95.836      		Click to order
      Click to order
      Click to order
