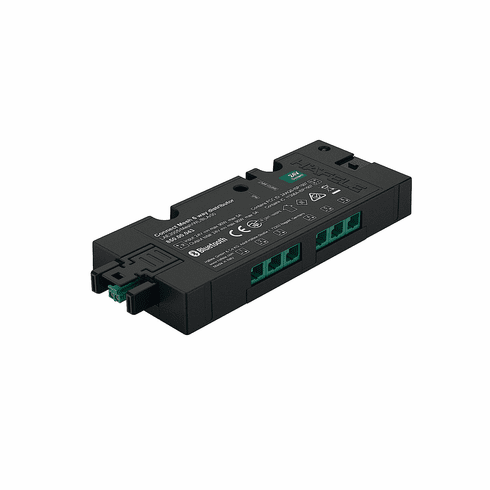

Hafele 850.00.043 Connect MESH 6-way distributor 24 volt 90 watt
, 85000043, 850-00-043 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 850.00.043
Product Title: Distributor, Häfele Connect Mesh, 6-way, with switching function, with programmable switching input, Voltage 24 V, max. connected wattage 90 W
Category: Distributor, Häfele Connect Mesh, 6-way, with switching function, with programmable switching input, Voltage 24 V, max. connected wattage 90 W
Item Details …
- WIth Bluetooth® and switching function
- Plug connection box to box
- The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
- Observe maximum wattage!
- Control several light colors on one box!
- Each output port can be controlled individually.
- Free Connect Mesh app for Apple iOS® and Android™
- Low voltage plug : Loox5 2-pin 24 V box to box
- Input ports : 1 x plug, Loox5 2-pin 24 V box to box
- Connections : 1 x socket, Loox5 2-pin 24 V box to box
- Connected output ports : 6 x sockets, Loox5 2-pin 24 V
- Control input ports : 1 x socket, Loox switch
- Power rating : 120.00 W
- Voltage : 24.00 V
- Color system : monochrome
- Area of application : For on/off switching and dimming (0–100 %) of monochrome lights; or with adapters for operation with multi-white lights, RGB lights and electrically operated fittings
- Version : Box-to-Box
- Material : Plastic
- Color/finish : Black
- Dim. (L x W x H) : 120 x 50 x 16 mm
- Switching function : Programmable with app
- Distance between controls max. : 5.00 m
- Standby power consumption : 0.50 W
- Order reference
- Please order adapter for multi-white lights. for RGB lights or for electrically operated fittings separately.
- Supplied with:
- 1 distributor including fixing material (adhesive tape and screws)
Additional Information …
With programmable switch input for standard Loox switches (switching function programmable via app, each active component can control each passive component)
The range between the smartphone or tablet to the nearest Häfele Connect Mesh component is approx. 5 m. Multiple components create a network, and can also be placed approx. 5 m apart.Wattage capacity within the scope of UL 1310 (e.g. USA, Canada): 90 WData Sheet
