Hafele 850.00.046 Connect Mesh Interface, 80-240 volts

Product Information

• Description

  Manufacturer: Hafele
  Item: 850.00.046

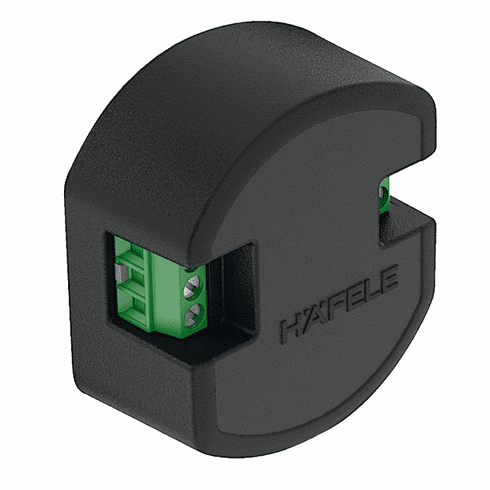

  Product Title: 2-Channel Interface, Häfele Connect Mesh, With potential free relay, 39 x 44 x 21 mm

  Category: 2-Channel Interface, Häfele Connect Mesh, With potential free relay, 39 x 44 x 21 mm

  Item Details …

  - Allows use of wall-mounted push buttons in the house installation design

  - Controls furniture and room lighting as well as house installation consumers with Häfele Connect Mesh

  - Use switches in the design of the house installation for the control of furniture and room lights with Häfele Connect Mesh

  - Area of application : For on/off control of room lighting or other home installations via the Häfele Connect Mesh and for integrating conventionalwall-mounted toggle switch into the Häfele Connect Mesh

  - Brand :

  - Model : Connect Mesh

  - Version : Function programmable via app, each active component can control each passive component,

  - Product type : 2-channel interface

  - Installation reference : Suitable for installation in switch boxes. Recommended switch box depth: 60 mm (2 3/8").

  - International certifications : Australia RCM, Japan JATE TELEC MIC, Great Britain UKCA

  - Wireless technology : Bluetooth®, EasyPairing

  - Degree of protection : IP20

  - Labels for correct purpose of use : Only to be used in enclosed, dry rooms.

  - Plug mains voltage : Direct connection for screw fixing

  - Connection : 2 switching input port for conventional wall-mounted toggles switches (double-throw), 1 output port for on/off switching of 80–230 V, 3 A (can be controlled from any active component of the network)

  - Dim. (L x W x H) : 39 x 44 x 21 mm

  - Material : Plastic

  - Height (inch) : 13/16"

  - Length (inch) : 1 9/16"

  - Width (inch) : 1 3/4"

  - Power consumption : 2.00 W

  - Order reference

  - Please order Häfele Connect Mesh 6-way distributor separately.

  - Wall-mounted push button (e.g. Gira 015500) and cavity wall box on site.

  - Supplied with:

  - 1 2-channel interface


  Additional Information …

  Programming of buttons via app to control each node of the network (all functions possible by pressing or holding down a button). Special feature: 2-channel interface sends switching pulses from two input ports into the network with the on/off/dimming functions and can receive on/off signals (no dimming) to switch room light or other home installations such as a sunshade blind via the 80-240 V output.



  Only trained electricians with appropriate qualifications are permitted to install, start up and maintain the product.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Häfele Connect Mesh 2-channel interface

  EN operating instructions for 2.0, 2-channel interface

  EU Declaration of Conformity

  Technical data sheet
