Hafele 850.00.983 Connect Mesh Eco Set Mw 12V (1 piece), 85000983, 850-00-983Zoom

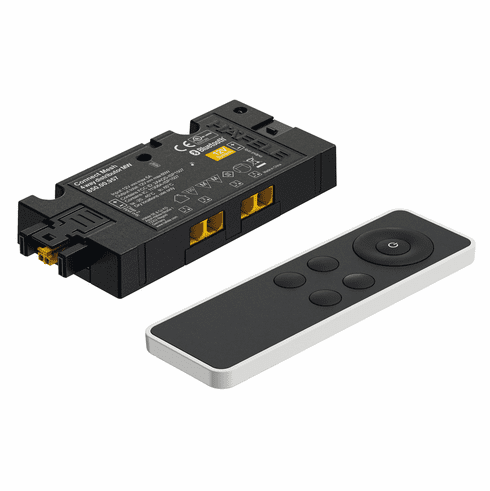

Hafele 850.00.983 Connect Mesh Eco Set Mw 12V

$112.00$140.00You Save: $28.00 (20%)
Item# Hafele-850-00-983
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 850.00.983

    Product Title: Distributor and Remote Control Set, Häfele Connect Mesh Eco, multi-white, 4-port, 12 V, Connected in the factory for immediate start-up, 36 W

    Category: Distributor and Remote Control Set, Häfele Connect Mesh Eco, multi-white, 4-port, 12 V, Connected in the factory for immediate start-up, 36 W

    Item Details …

    -     4-port Connect Mesh RGB Distributor (Up to 3 additional distributors can be added to the network)

    -

    - 1-Channel Functionality

    -

    - • By default, the remote controls all the lights together.

    - • When you select one of the four channels on the remote, the remote will only control the lights connected to the mesh box that was assigned to that channel during the provisioning process.

    - > Distributor and remote are “pre-paired”; no app required

    - > 3-wire Multi-white ports; no adapters needed

    - > Ideal for smaller installations with up to 4 distributors and 1 remote control

    - Low voltage plug : Loox5 2-pin 12 V

    - Input ports : 1 x plug, Loox5 2-pin 12 V box to box

    - Connections : 1 x socket, Loox5 2-pin 12 V box to box

    - Connected output ports : 4 x sockets, Loox5 3-pin MW 12 V

    - Memory function : No

    - Power rating : 36.00 W

    - Current carrying capacity : 3.00 A

    - Color system : MW

    - Area of application : For on/off switching and dimming (0-100%) and multi-white colour change

    - Suitable for : For multi-white lights

    - Material : Plastic

    - Color/finish : Black

    - Dimensions : Distributor: 105 x 50 x 16 mmRemote control: 125 x 40 x 12 mm

    - Number of controls for each installation max. : 4.00

    - Distance between controls max. : 10.00 m

    - Standby power consumption : 0.50 W

    - Order reference

    - Connect Mesh 4-port series RGB networks are expandable to up to 4 distributors. Please order additional distributors and power supplies separately. Note nominal voltage!

    - Supplied with:

    - 1 4-port connect mesh multi-white distributor

    - 1 Remote control with CR2032 battery


    Additional Information …

    Use the remote control to select one of max. four distributors (distributors 1, 2, 3 or 4) and simultaneously control all four outputs at this distributor (on/off, light colour, dimming level).



    Memory function after power loss = 100%; Color temp. 3850K (Memory function for 12 V distributors with production date of 03/2022 or later will be “Remembers last state”.)For full Connect Mesh functionality with switching function and app control, please use the Häfele Connect Mesh 6-waydistributor.Distance information within the network applies to a clear line of sight. Obstacles and sources of electromagnetic interference can reduce the range. Adding another 4-port distributor can be used as a signal booster to compensate for the loss of range.Maximum cable length from the power supply to the distributor is 2 m (6.5 ft.)
