Hafele 850.00.984 Connect Mesh Eco Set Mw 12V
, 85000984, 850-00-984 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 850.00.984

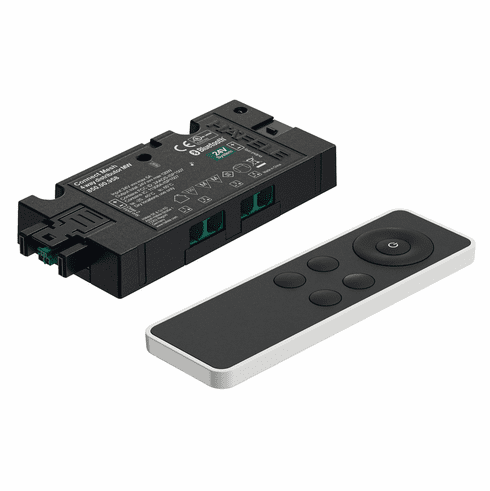

Product Title: Distributor and Remote Control Set, Häfele Connect Mesh Eco, multi-white, 4-port, 24 V, Connected in the factory for immediate start-up, 72 W
Category: Distributor and Remote Control Set, Häfele Connect Mesh Eco, multi-white, 4-port, 24 V, Connected in the factory for immediate start-up, 72 W
Item Details …
- 4-port Connect Mesh RGB Distributor (Up to 3 additional distributors can be added to the network)
-
- 1-Channel Functionality
-
- • By default, the remote controls all the lights together.
- • When you select one of the four channels on the remote, the remote will only control the lights connected to the mesh box that was assigned to that channel during the provisioning process.
- > Distributor and remote are “pre-paired”; no app required
- > 3-wire Multi-white ports; no adapters needed
- > Ideal for smaller installations with up to 4 distributors and 1 remote control
- Low voltage plug : Loox5 2-pin 24 V
- Input ports : 1 x plug, Loox5 2-pin 24 V box to box
- Connections : 1 x socket, Loox5 2-pin 24 V box to box
- Connected output ports : 4 x sockets, Loox5 3-pin MW 24 V
- Memory function :
- Power rating : 72.00 W
- Current carrying capacity : 3.00 A
- Color system : MW
- Area of application : For on/off switching and dimming (0-100%) and multi-white colour change
- Suitable for : For multi-white lights
- Material : Plastic
- Color/finish : Black
- Dimensions : Distributor: 105 x 50 x 16 mm (4 1/8 x 2 x 5/8")Remote control: 125 x 40 x 12 mm (4 15/16 x 1 5/8 x 15/32")
- Number of controls for each installation max. : 4.00
- Distance between controls max. : 10.00 m
- Standby power consumption : 0.50 W
- Order reference
- Connect Mesh 4-port series multi-white networks are expandable
- to up to 4 distributors. Please order additional distributors and power supplies separately. Note nominal voltage!
- Supplied with:
- 1 4-port connect mesh multi-white distributor
- 1 Remote control with CR2032 battery
Additional Information …
Use the remote control to select one of max. four distributors (distributors 1, 2, 3 or 4) and simultaneously control all four outputs at this distributor (on/off, light colour, dimming level).
Memory function after power loss = Remembers last state.For full Connect Mesh functionality with switching function and app control, please use the Häfele Connect Mesh 6-waydistributor.Distance information within the network applies to a clear line of sight. Obstacles and sources of electromagnetic interference can reduce the range. Adding another 4-port distributor can be used as a signal booster to compensate for the loss of range.Maximum cable length from the power supply to the distributor is 2 m (6.5 ft.)Data Sheet
