Hafele 940.41.007 HAWA-Junior 40/B Fitting Set (1 kit), 94041007, 940-41-007Zoom

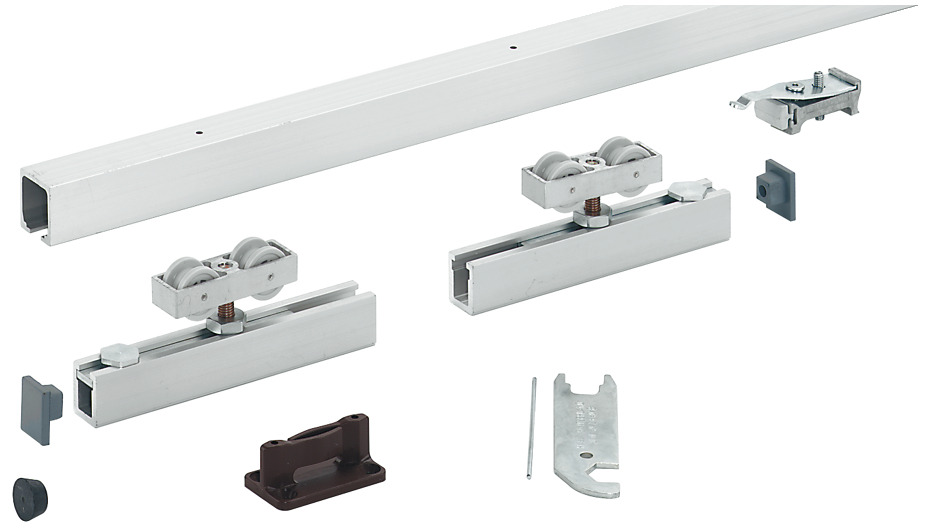

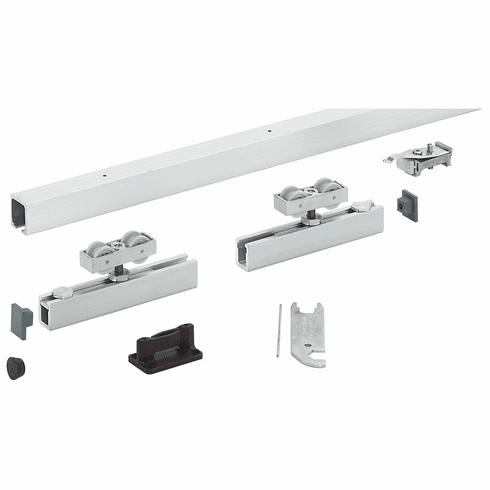

Hafele 940.41.007 Sliding Door Hardware, Hawa Junior 40/B, set for 1-leaf wooden sliding doors, height adjustable, min. installation height, for door weight up to 40 kg, With 1 track buffer/1 wall buffer

$458.56$573.20You Save: $114.64 (20%)
Item# Hafele-940.41.007
Availability: in stock (44 or less, Next Stock: 2-6 weeks)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 940.41.007

    Product Title: Sliding Door Hardware, Hawa Junior 40/B, set, for 1-leaf wooden sliding doors, height adjustable, min. installation height, for door weight up to 40 kg, With 1 track buffer/1 wall buffer

    Category: Sliding Door Hardware, Hawa Junior 40/B, set, for 1-leaf wooden sliding doors, height adjustable, min. installation height, for door weight up to 40 kg, With 1 track buffer/1 wall buffer

    Item Details …

    -     For 2 bi-parting sliding doors, please order 2 sets

    - Smooth quiet operation

    - Outstanding durability

    - Rattle-free bottom guide

    - Minimum installation height

    - Suspension with carrier profile

    - Number of doors per system max. : 1 to 2

    - Number of doors : 1.00

    - For door material : wood

    - Model : 40 B

    - For door weight : ?40 kg

    - For door width : ?3,000 mm

    - Controller installation options : Ceiling installation, Wall mounting, Integrated ceiling installation, Wall pocket solution

    - For door thickness : 35?–?80 mm

    - Adjustment facility : Height adjustment: ±3 mm, with integrated anti-twist protection, Track buffer with adjustable retaining spring

    - For door thickness min. : 1"

    - Load bearing capacity : 88 lbs.

    - Area of application : For 1 and 2 sliding wood doorsFor 1-leaf sliding doors for wall pocket installation

    - Note on door width : The max. door width for the pocket door solution is 1,250 mm.

    - For door height : ?4,000 mm

    - Running position : Top

    - Functionality : subsequent disassembly of the running track without opening the wall is possible, the running gear and the soft and self closing mechanism can be removed, stopper position can be readjusted in wall pocket

    - Installation : Suspension with recessed support profile

    - Installation reference : Pocket door solution: subsequent disassembly of the running track is possible without opening the wall, running gear and soft and self closing mechanism can be removed, Stopper position in the wall pocket , readjustable

    - Door processing : With recess

    - Standard : Certified in compliance with EN 1527:2013

    - Classification in compliance with EN 1527 : -|6|1|-|1|0|-|1|3

    - Order reference

    - Order 2 sets for 2-leaf sliding doors.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Upper Track, HAWA Junior 40 (choose one):


    Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):
    • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m940.41.130Click to order


    Optional Accessories:

    • Soft and Self Closing Mechanism, SoftMove 40 for Hawa Junior 40
    • Track Stopper, with adjustable retention spring
    • Spring buffer, for Hawa Junior 40
    • Sealing Profile, Drilled
    • Bar Bolt Lock, Hawa Doorfix
