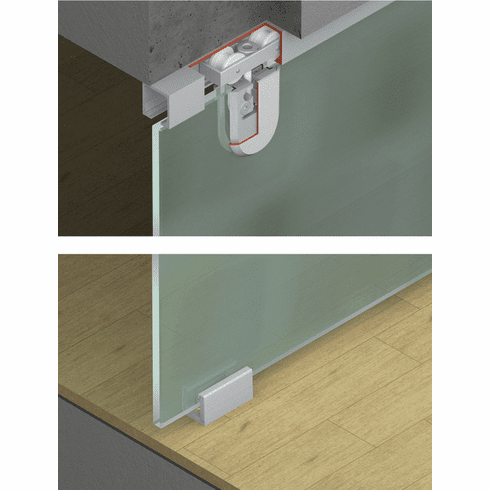

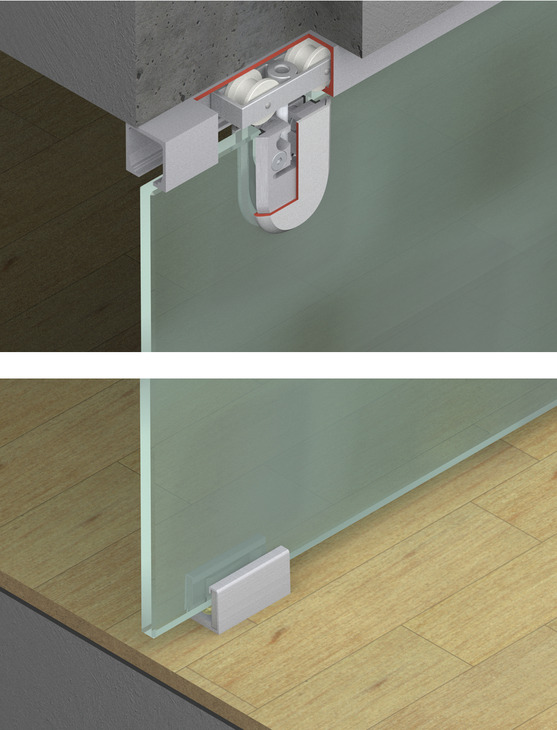

Hafele 940.41.008 Sliding Door Hardware, Hawa Junior 40/GP, set for 1-leaf and 2-leaf glass sliding doors, ceiling installation, low installation height, height adjustable, for door weight up to 40 kg, without running track/floor guide/cover caps

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.41.008

  Product Title: Sliding Door Hardware, Hawa Junior 40/GP, set, Top Hung System, without running track/floor guide/cover caps

  Category: Sliding Door Hardware, Hawa Junior 40/GP, set, Top Hung System, without running track/floor guide/cover caps

  Item Details …

  - When using 2 sliding doors on the same track, please make sure that glass panels do not collide. Please use a lower guide channel with a door stopper or use protective edge trim.#The complete fitting set is always delivered without running and guide rails, please order separately.

  - Smooth, quiet operation

  - Maintenance-free

  - Rattle-free bottom guide

  - Simple installation

  - Low installation height

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : glass

  - Model : 40 GP

  - Version : without running track, without floor guide, without cover caps

  - For door weight : ?40 kg

  - Controller installation options : Ceiling installation

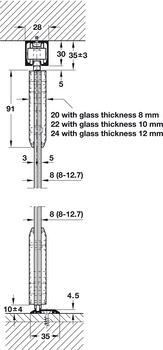

  - For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm, 12.7 mm

  - For glass thickness with laminated glass : 8,7–12,7 mm

  - Adjustment facility : Height adjustment: ±3 mm, Vertical adjustment without removing the glass doortrack buffer with adjustable retaining spring

  - Load bearing capacity : Max: 88 lbs.

  - For door width (inches) : Max. 31 1/2"

  - Area of application : For 1 doors

  - Suitable for : Minimum installation height

  - For glass type : Tempered safety glass, Laminated glass

  - Running position : Top

  - Installation : Suspension with hanger bolt, Point fixing with glass retainer

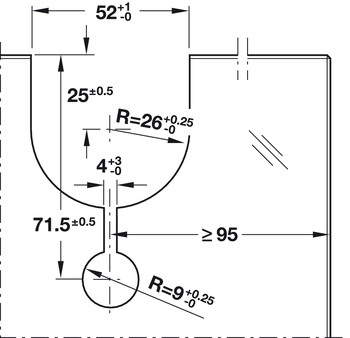

  - Door processing : With glass preparation

  - Standard : Certified in compliance with EN 1527:1998

  - Classification in compliance with EN 1527 : -|6|1|0|-|0|-|1|3

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears

  - 2 hanger bolts M8 with mounting screws

  - 2 point fixing sets with glass holder

  - 2 track buffers

  - 1 disposable drilling jig

  - 1 rubber wall buffer

  - 1 height adjusting pin


  Additional Information …

  When using 2 sliding doors on the same track, please make sure that glass panels do not collide. Please use a lower guide channel with a door stopper or use protective edge trim.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.287

  TCH_Architectural_Hardware_2022|Page 1.297



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, HAWA Junior 40 (choose one):


  • Pre-drilled, Length: (4' 7 1/8") 1.4 m Pre-drilled, Length: (5' 3") 1.6 m Pre-drilled, Length: (5' 10 7/8") 1.8 m Pre-drilled, Length: (6' 6 3/4") 2 m Pre-drilled, Length: (9' 10 1/8") 3 m Pre-drilled, Length: (13' 1 1/2") 4 m Pre-drilled, Length: (19' 8 1/4") 6 m Pre-drilled, Length: (8' 2 7/16") 2.5 m

    940.40.140 940.40.160 940.40.180 940.40.200 940.40.300 940.40.400 940.40.600 940.80.633

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order

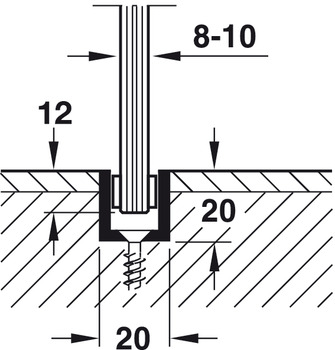

  Single Lower Guide Track, for Clip or Glue Mounting (choose one):


  • 4.5 x 35 mm (3/16 x 1 3/8"), 2.5 m Length 4.5 x 35 mm (3/16 x 1 3/8"), 3.5 m Length

    940.41.725 940.41.735

    Click to order Click to order

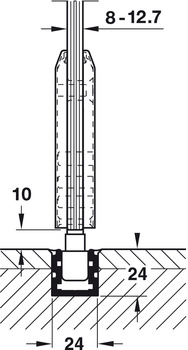

  Guide Channel, 24 x 24 mm (15/16" x 15/16") (choose one):


  • For Hawa Junior, length: 6 m (19' 8 1/4")

    940.81.600

    Click to order



  Lower Guide Channel, Pre-drilled (choose one):


  • for Hawa Telescopic, Junior, folding wall, Length: 2.5 m (8' 2 7/16") for Hawa Telescopic, Junior, folding wall, Length: 6.0 m (19' 8 1/4")

    941.00.925 941.00.960

    Click to order Click to order



  Optional Accessories:



  • Glass Door Lock, Toplock for European Profile Cylinder
  • Patch Suspension, With patch fitting for laminated glass/tempered safety glass
  • Lower Guide, Spring-loaded
  • Fixing set, For guide track
  • Lower Guide, with Mounting Screws
  • Door Stopper, For Lower Guide Channel
  • Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm
  • Cover Cap, for Patch Suspension, Square
  • Cover Cap, for Patch Suspension, Round
  • Cover Profile, for Upper Track with Pocket
  • Fastening Bolts and Nuts, For Angle Profile, Junior 40
