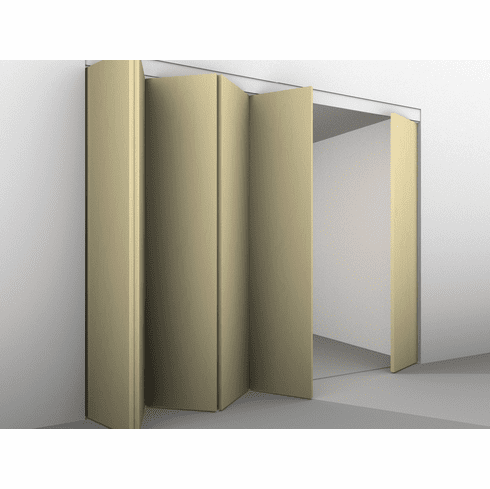

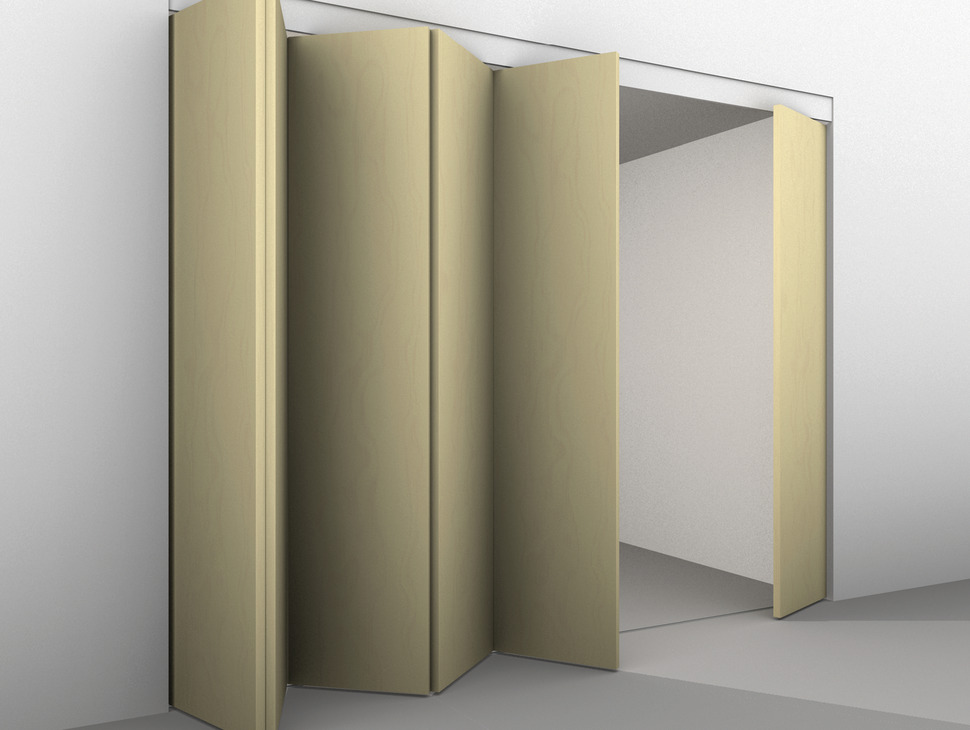

Hafele 943.29.014 Sliding Door Fitting, Hawa Variofold 80/H for Pivot Doors with Guide Channel
Product Information
Description
Manufacturer: Hafele
Item: 943.29.014
Product Title: Sliding Door Fitting, Hawa Variofold 80 H for Pivot Doors, for hinged wooden doors with adjustable height, for door weight up to 80 kg, for door width up to 500–900 mm, with Guide Channel
Category: Sliding door fitting, Hawa Variofold 80/H hinged doors, for hinged wooden doors with adjustable height, for door weight up to 80 kg, for door width up to 500–900 mm
Item Details …

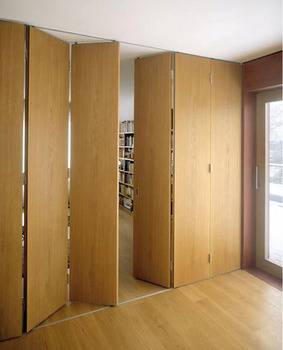

- Folding/sliding hardware for wall partitions
- For 2 – 7 folding panels

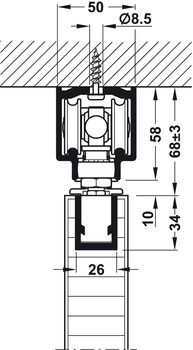

- Upper track made out of anodized aluminum

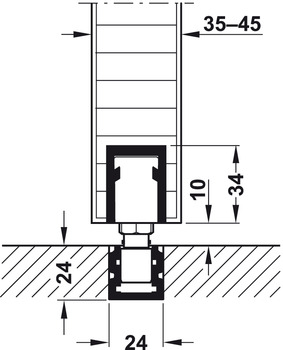

- Lower guide channel made out of anodized aluminum

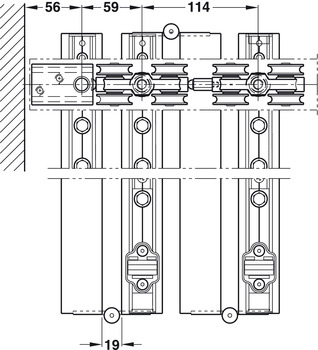

- Dual running gear with ball bearings
- Minimal space required in stacking area
- Extremely quiet and smooth operation
- Spring : Center suspension
- For door thickness min. : 1 3/8”
- Load bearing capacity : For Panel: 176 lbs.
- Width (inch) : Panel: 19 11/16” - 35 7/16”
- For door material : wood
- Number of doors per system max. : >4
- For door height : ?3,500 mm
- For door thickness : 35?–?45 mm
- For door weight : ?80 kg
- For door width : 500?–?900 mm
- System width 1-sided : 6.00 m
- System width 2-sided : 12.00 m
- Running system : Concealed in track
- Controller installation options : Ceiling installation
- Adjustment facility : Height adjustment: ±3 mm, Height adjustable ± 3 mm (±1/8”)
- Version : clear threshold guide,Hinge with heavy duty bearings
- Support flange connection : Carriage
- Material/finish : AluminiumPlastic
- Supplied with:
- 1 top pivot bearing
- 1 folding/access door catch, adjustable
- 3 support profiles, pre-drilled
- 1 thrust bearing for guide track, with follower
- 3 cover caps for support profile
Additional Information …
Bottom guide tracks must be used for Hawa Variofold systems. However, for systems with 2 doors on both sides and up to a system width of max. 3.6 m the bottom guide track is not required.Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.158-1.160.pdf
