Hafele 943.29.015 Pivot Door Set, Variofold/Centerfold 80/H

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.29.015

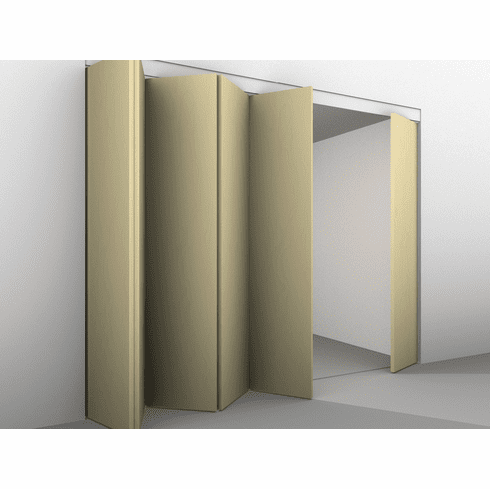

  Product Title: Folding wall fitting, Hawa Vario/Centerfold 80 H, for hinged wooden doors with adjustable height, for door weight up to 80 kg, for door width up to 500–900 mm, without Guide Channel

  Category: Sliding door fitting, Hawa Variofold 80/H hinged doors, for hinged wooden doors with adjustable height, for door weight up to 80 kg, for door width up to 500–900 mm

  Item Details …

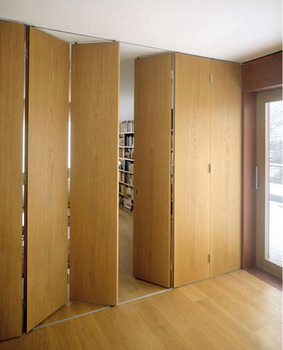

  - Folding/sliding hardware for wall partitions

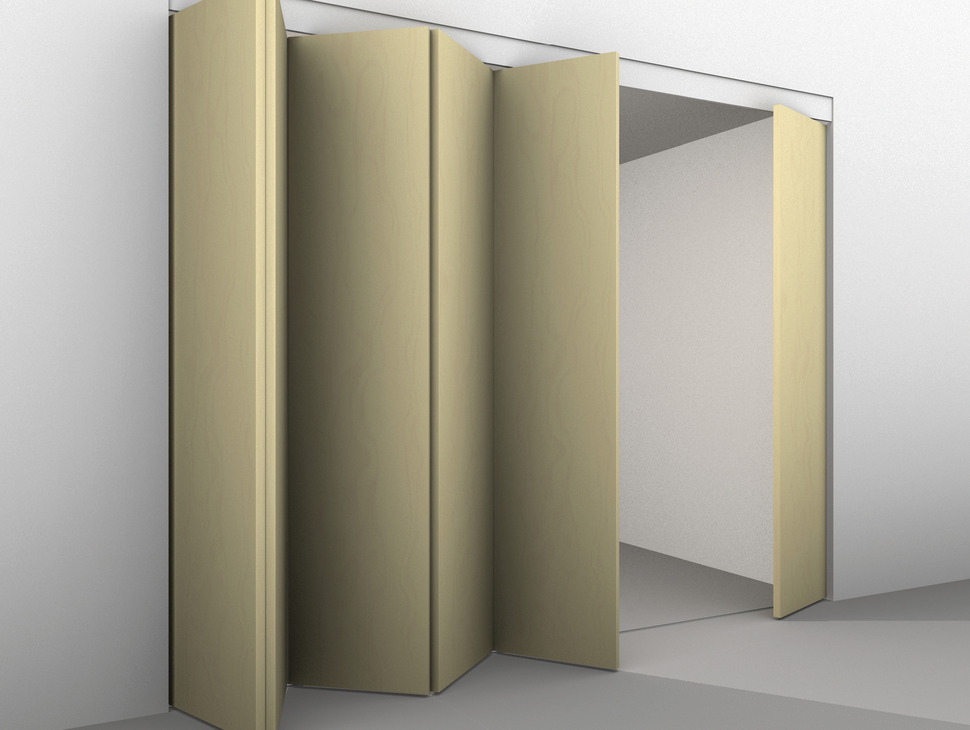

  - For 2 – 7 folding panels

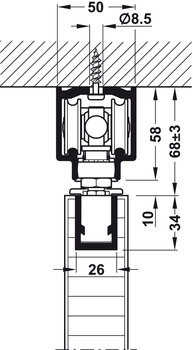

  - Upper track made out of anodized aluminum

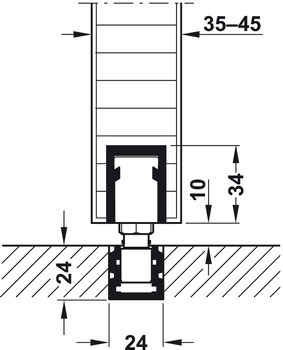

  - Lower guide channel made out of anodized aluminum

  - Dual running gear with ball bearings

  - Minimal space required in stacking area

  - Extremely quiet and smooth operation

  - Spring : Center suspension

  - For door thickness min. : 1 3/8”

  - Load bearing capacity : For Panel: 176 lbs.

  - Width (inch) : Panel: 19 11/16” - 35 7/16”

  - For door material : wood

  - Number of doors per system max. : >4

  - For door height : ?3,500 mm

  - For door thickness : 35?–?45 mm

  - For door weight : ?80 kg

  - For door width : 500?–?900 mm

  - System width 1-sided : 6.00 m

  - System width 2-sided : 12.00 m

  - Running system : Concealed in track

  - Controller installation options : Ceiling installation

  - Adjustment facility : Height adjustment: ±3 mm, Height adjustable ± 3 mm (±1/8”)

  - Version : clear threshold guide,Hinge with heavy duty bearings

  - Support flange connection : Carriage

  - Material/finish : AluminiumPlastic

  - Supplied with:

  - 1 top pivot bearing

  - 1 folding/access door catch, adjustable

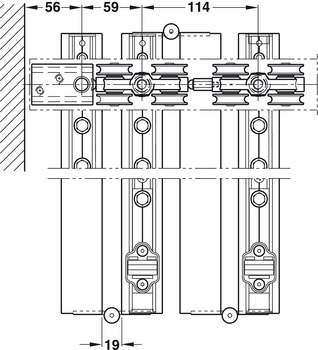

  - 3 support profiles, pre-drilled, length 208 mm

  - 1 pressure bearing sleeve with follower

  - 3 cover caps for support profile


  Additional Information …

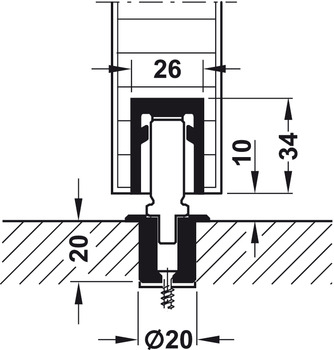

  Bottom guide tracks must be used for Hawa Variofold systems. However, for systems with 2 doors on both sides and up to a system width of max. 3.6 m the bottom guide track is not required.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Hawa Centerfold 80 H installation instructions

  Hawa Variofold 80 H installation instructions

  Installation instructions for Hawa Centerfold/Variofold 80 running gear

  TCH_Architectural_Hardware_2022|Page 1.193



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.158-1.160.pdf

  Hafele 943.29.015 Pivot Door Set, Variofold/Centerfold 80/H


  • Hardware > Hardware Accessories
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 943.29.015
  • Condition: new

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled (choose one):


  • For Hawa Variofold and Centerfold 80/H, 6 m (19' 8 1/4")

    943.27.960

    Click to order



  Guide Channel, 24 x 24 mm (15/16" x 15/16") (choose one):


  • For Hawa Junior, length: 6 m (19' 8 1/4")

    940.81.600

    Click to order



  Optional Accessories:



  • Bar Bolt Lock, Hawa Doorfix
  • Heavy Duty Ball Bearing Hinge, Stainless steel
  • Deadbolt Lock, For Hawa Variofold and Centerfold 80/H
  • Bar Bolt, with square/hexagonal nut
  • Thumbturn, with square pin
  • Slip-fit Rose, For Hawa Variofold and Centerfold 80/H
  • Dust-Proof Strike, With Spring-Loaded Cover
  • Rosette, For Dust-proof Strike 946.23.920
  • Stike Plate, With Oblong Hole
  • Socket Key, for Bolt Lock
