Hafele 943.31.001 HAWA Aperto 60, parallel parking set, without guide track (1 piece), 94331001, 943-31-001Zoom

Hafele 943.31.001 Parking Areas for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, parallel without guide track

$1,925.06$2,406.32You Save: $481.26 (20%)
Item# Hafele-943-31-001
Availability: backorder or special order ETA:2-4 Weeks

Product Information

  • Description

    Manufacturer: Hafele
    Item: 943.31.001

    Product Title: Sliding door fitting, Hawa Aperto 60/H, 60/GL Parking area set, Parallel Parking Area Without Guide Track, parallel without guide track

    Category: Sliding door fitting, Hawa Aperto 60/H, 60/GL Parking area set, Parallel Parking Area Without Guide Track, parallel without guide track

    Item Details …

    -     Modular running track system for room dividers and screensSuspension with support profileHeight adjustable sliding door leavesExtremely light and silent running in curvesA single lock secures the entire installationInstallations without a bottom guide channel are possibleCenter stop with adjustable retention spring catchStandard parking area sets accommodate up to 9 door panelsParking at 90º or parallel to the sliding axis

    - Set type : Set for parking areas

    - For door width : 500?–?1,100 mm

    - For door thickness min. : 1 1/2"

    - For door thickness max. : 2"

    - Door weight max. : 130 lbs.

    - For door material : glass

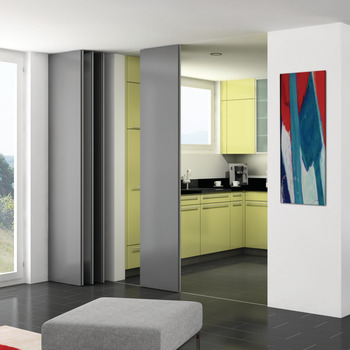

    - Area of application : Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildingslocking of the system with one lock

    - Suitable for : Flexible room or visual separation

    - Number of doors per system max. : >4

    - For glass type : Tempered safety glass

    - For glass thickness with tempered safety glass : 8 mm, 10 mm, 9.5 mm

    - For door height : ?2,600 mm

    - For door weight : ?60 kg

    - Running system : Concealed in track

    - Controller installation options : Ceiling installation

    - Adjustment facility : Height adjustment: ±3 mm, Door height adjustable ±3 mm

    - Support flange connection : point support, Carriage

    - Installation reference : For left and right hand use

    - Type of Opening : Manual

    - Order reference

    - Several individual elements must be ordered in order to achieve a functional system with the Hawa Aperto 60/GL sliding door fitting.

    - The following must be determined before ordering:

    - Type of guidance (with or without bottom guide track)

    - Hinged door (with or without)

    - Type of parking area (parallel or 90° to sliding direction)

    - Width of system, which determines the number of individual elements

    - Glass thickness (8, 9.5 or 10 mm)

    - The required individual elements can be determined from these specifications:

    - Door types (A-M)

    - Stacking (parallel or 90°)

    - 8 different system types can be created by combining the individual elements

    - Create system types, see system types.

    - To order a system type, the individual elements that are listed as sets must be selected.

    - The following must also be ordered:

    - top running tracks

    - bottom guide tracks (optional)

    - glass fixing parts

    - cover profiles

    - internal track covering for parking area (optional)

    - cylinder module for rounded bolt lock (optional, only with lockable door types A, B, C, D, F, G, M)

    - connecting parts (optional)

    - Supplied with:

    - 1 Single running track, inner bend 75°

    - 1 Single running track, outer bend 75°

    - 1 End piece for running track

    - 6 Connecting pins for running track

    - 1 Centre stop

    - 1 Stop for running track (set)

    - 1 Fixing plate for 2 x single running track

    - 11 Fixing plates for single running track

    - 1 Allen key

    - 1 Adjustment tool

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Sliding Door Catalog Page: selection_1.170-1.175.pdf

    Hafele 943.31.001 HAWA Aperto 60, parallel parking set, without guide
    • Hardware > Hardware Accessories
    • Hardware,Hafele,500-3000
    • Brand: Hafele
    • Part#: 943.31.001
    • Condition: new

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Top Running Track, Single (choose one):
    • for Hawa Aperto 60 H, Length: 2.5 (8' 2 7/16")
      for Hawa Aperto 60 H, Length: 3.5 (11' 5 13/16")
      for Hawa Aperto 60 H, Length: 6 m (19' 8 1/4")      		943.30.925
      943.30.935
      943.30.960      		Click to order
      Click to order
      Click to order


    Guide Channel, Not drilled, 16 x 16 mm (choose one):
    • for Hawa Aperto 60/H/GL, Length: 6 m (19' 1/4")943.31.960Click to order


    Guide Channel, Pre-drilled, 16 x 16 (5/8" x 5/8") (choose one):
    • for Hawa Puro, Aperto, Length: 3.5 m (11' 5 13 /16")
      for Hawa Puro, Aperto, Length: 6 m (19' 1/4")      		943.31.835
      943.31.860      		Click to order
      Click to order


    Optional Accessories:

    • Edge Protection Profile, Hawa, accessories for wooden doors, sliding door fittings
    • Sealing Profile, Drilled
    • Hex Key, spanner size: 4 mm
    • Stopper, for guide track
    • Connecting Pins, for guide track
    • Buffer, for running track
    • Center stop, with adjustable retainer
    • End piece, for running track
    • Single running track, Curved 90°, side length: 70 mm
    • Mounting Plate, for Single Running Track
    • Fixing Plate, for 2 x single running track
    • Connecting bolts, for running tracks and profiles
