Hafele 943.31.010 Hawa Aperto 60/GL Pivot Door Set Type E, 94331010, 943-31-010Zoom

Hafele 943.31.010 Sliding doors type E, Hawa Aperto 60/GL, set Sliding wall fitting, for up to 8 stackable glass sliding doors/1 hinged door, ceiling installation, door weights up to 60 kg, door heights up to 2,600 mm, door type E

$818.43$1,636.86You Save: $818.43 (50%)
Item# Hafele-943-31-010
Availability: in stock
CLEARANCE 50% OFF (non refundable)
Available Quantity: 22 until supplies last

Product Information

  • Description

    Manufacturer: Hafele
    Item: 943.31.010

    Product Title: Sliding Door Hardware, HAWA Aperto 60 GL, set, Sliding wall fitting, for up to 8 stackable glass sliding doors/1 hinged door, ceiling installation, door weights up to 60 kg, door heights up to 2,600 mm, door type E

    Category: ,

    Item Details …

    -     For door material : glass

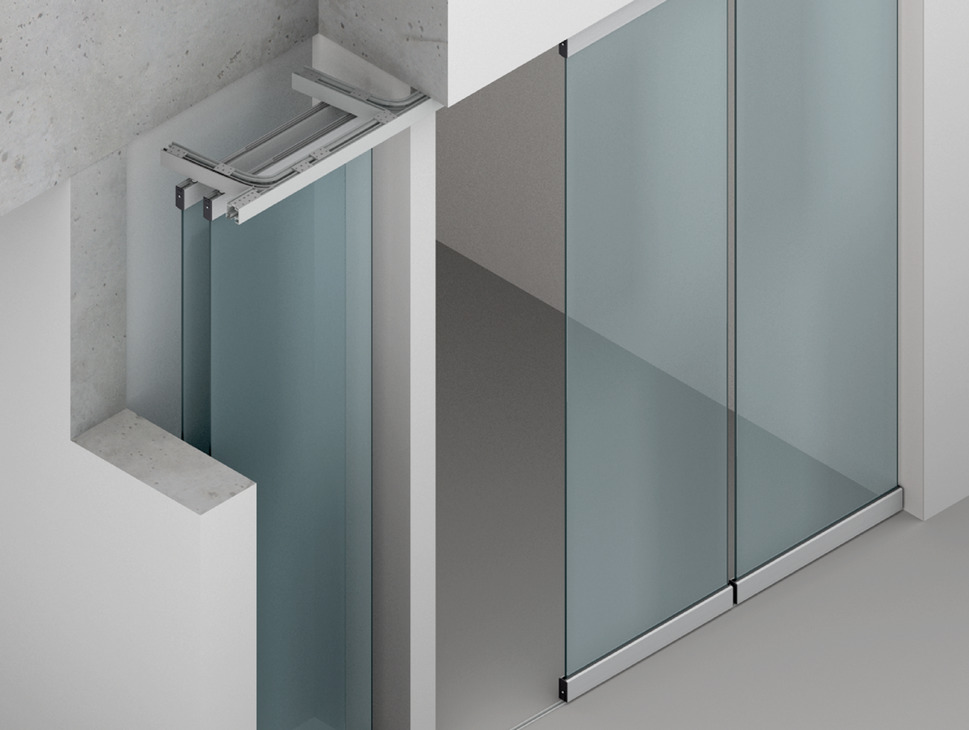

    - Area of application : Suitable for flexible room partitioning or screens of up to 8 sliding doors and 1 access door in commercial and public buildingsfloor to ceiling glazing or partial glazing, e.g. counter top edge to ceiling

    - Suitable for : Flexible room or visual separation

    - Number of doors per system max. : >4

    - For glass type : Tempered safety glass

    - For glass thickness with tempered safety glass : 8 mm, 10 mm, 9.5 mm

    - For door height : ≤2,600 mm

    - For door weight : ≤60 kg

    - Running system : Concealed in track

    - Controller installation options : Ceiling installation

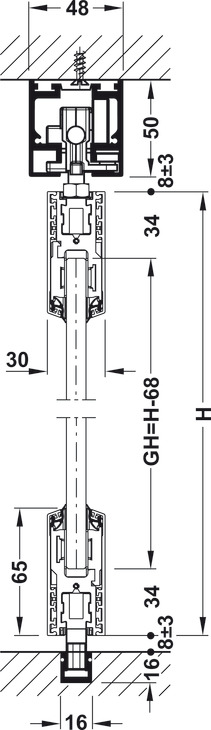

    - Adjustment facility : Height adjustment: -3 – 3 mm, Door height adjustable ±3 mmcentre stop with adjustable retainer

    - Support flange connection : point support, Carriage

    - Material/finish : Silver colored, anodized

    - Type of Opening : Manual

    - Order reference

    - Several individual elements must be ordered in order to achieve a functional system with the Hawa Aperto 60/GL sliding door fitting.

    - The following must be determined before ordering:

    - Type of guidance (with or without bottom guide track)

    - Hinged door (with or without)

    - Type of parking area (parallel or 90° to sliding direction)

    - Width of system, which determines the number of individual elements

    - Glass thickness (8, 9.5 or 10 mm)

    - The required individual elements can be determined from these specifications:

    - Door types (A-M)

    - Stacking (parallel or 90°)

    - 8 different system types can be created by combining the individual elements

    - Create system types, see system types.

    - To order a system type, the individual elements that are listed as sets must be selected.

    - The following must also be ordered:

    - top running tracks

    - bottom guide tracks (optional)

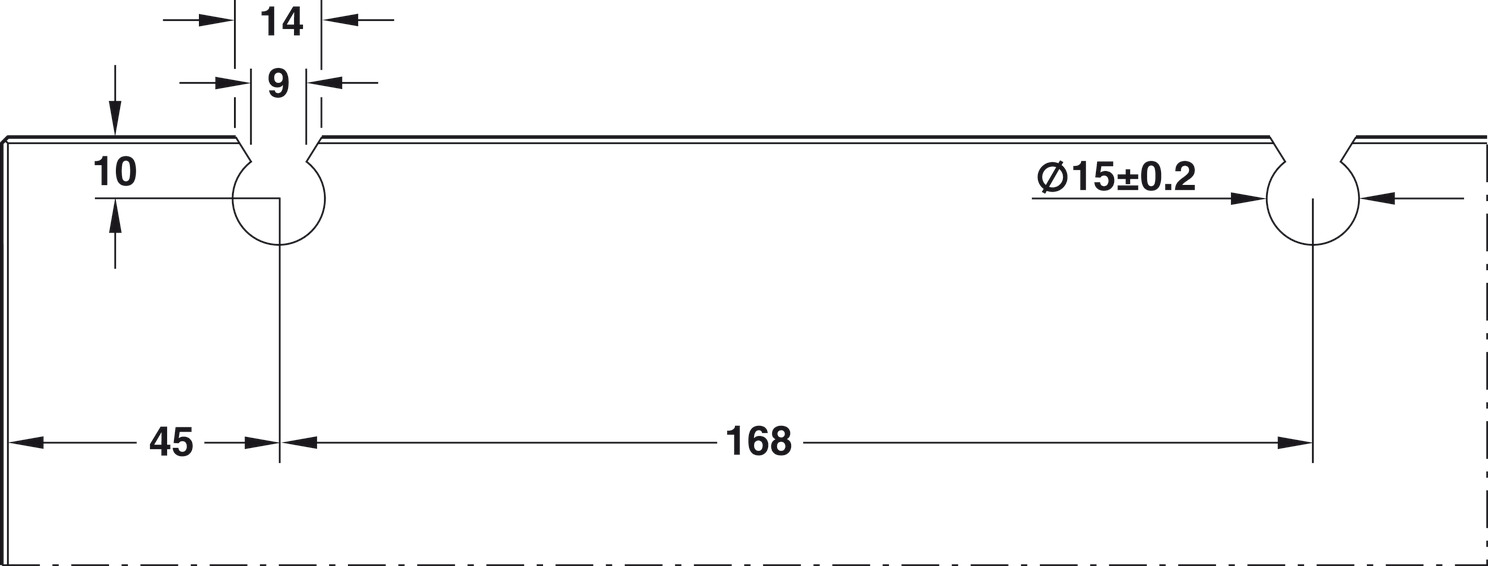

    - glass fixing parts

    - cover profiles

    - internal track covering for parking area (optional)

    - cylinder module for rounded bolt lock (optional, only with lockable door types A, B, C, D, F, G, M)

    - connecting parts (optional)

    - Supplied with:

    - 2 suspension carriages

    - 2 running gears

    - 4 glass retaining profiles

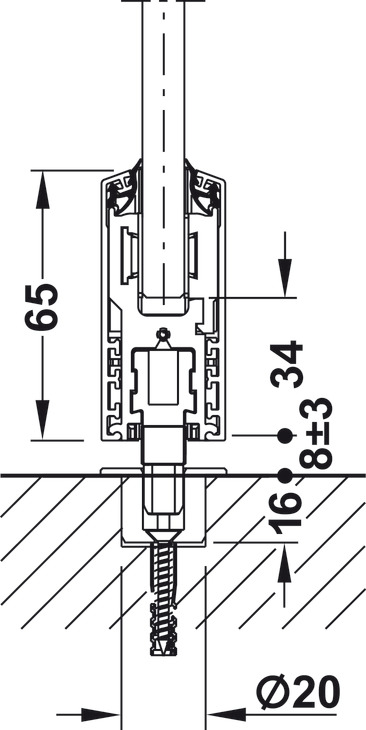

    - 1 clear threshold guide

    - 1 set of retaining plates/support bolts/eccentrics and cover caps

  • Data Sheet

  • Product Resources

  • Specifications



    Please contact us for more information about this product

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Guide Channel, Not drilled, 16 x 16 mm (choose one):
    • for Hawa Aperto 60/H/GL, Length: 6 m (19' 1/4")943.31.960Click to order


    Guide Channel, Pre-drilled, 16 x 16 (5/8" x 5/8") (choose one):
    • for Hawa Puro, Aperto, Length: 3.5 m (11' 5 13 /16")
      for Hawa Puro, Aperto, Length: 6 m (19' 1/4")      		943.31.835
      943.31.860      		Click to order
      Click to order


    Top Running Track, Single (choose one):
    • for Hawa Aperto 60 H, Length: 2.5 (8' 2 7/16")
      for Hawa Aperto 60 H, Length: 3.5 (11' 5 13/16")
      for Hawa Aperto 60 H, Length: 6 m (19' 8 1/4")      		943.30.925
      943.30.935
      943.30.960      		Click to order
      Click to order
      Click to order


    Optional Accessories:

    • Glass Door Lock, Toplock for European Profile Cylinder
    • Fixing Plate, for 2 x single running track
    • Cover cap, for 2 x single running track
