Hafele 261.95.704 Tofix Connector Housing, plastic, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 261.95.704

  Product Title: Connector Housing, Tofix, For wood thickness: 18 - 26 mm, White

  Category: ,

  Item Details …

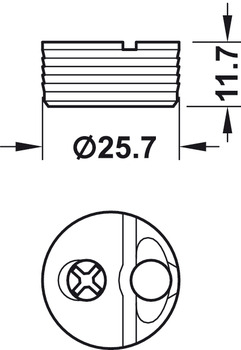

  - Dim. A = drilling dimension

  - Dim. B = wood thickness

  - Drilling dim. A = B - 9 + 7.5

  - No protruding parts, therefore stackable with connector fitted

  - The housing that is used is half covered when installed, therefore not much of the connector is visible

  - Bolt with threaded part for high pull-out resistance and durable connection

  - Easy to tighten thanks to 45° screwdriver inclination

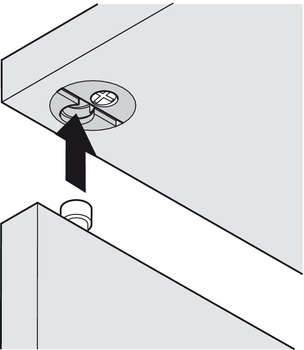

  - Area of application : for cabinets with continuous cabinet top panel, e.g. sideboards, the housing is semi-concealed when installed

  - Version : with tightening element

  - Material : Plastic, Tightening element: Zinc alloy

  - For wood thickness : 18 – 26 mm

  - Installation : Housing for press fitting

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.42-11.42.pdf
