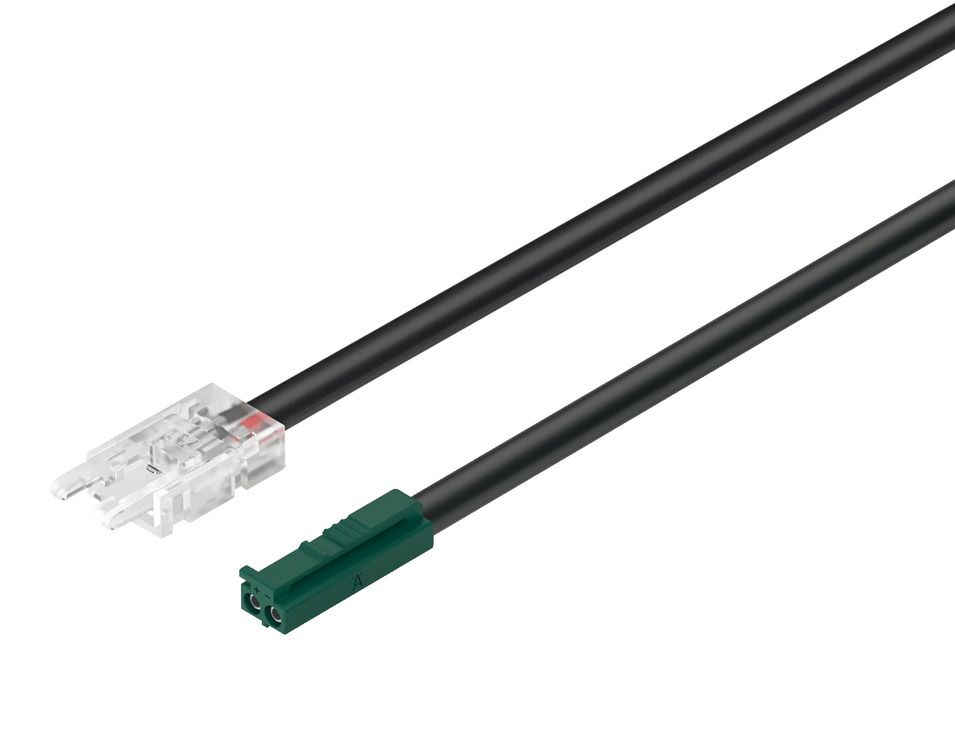

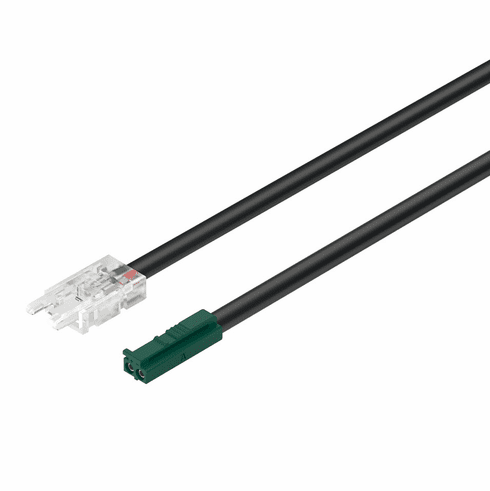

Hafele 833.95.706 Loox5 lead ribbon 8mm/24V/2.0m

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.706

  Product Title: Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18, 5 A, 18 AWG, clip width 10 mm, Length: 2,000 mm (78 3/4"), 5 A/18, 24V

  Category: Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18, 5 A, 18 AWG, clip width 10 mm

  Item Details …

  - Color system : monochrome or MW 2-wire-Technology

  - Input ports : 1 x plug, Loox5 2-pin 24 V

  - Connections : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Nominal voltage : 24.00 V

  - Clip width : 10.00 mm

  - Current carrying capacity : 5.00 A

  - Wire cross section AWG : 18.00

  - Width (inch) : Clip: 3/8"

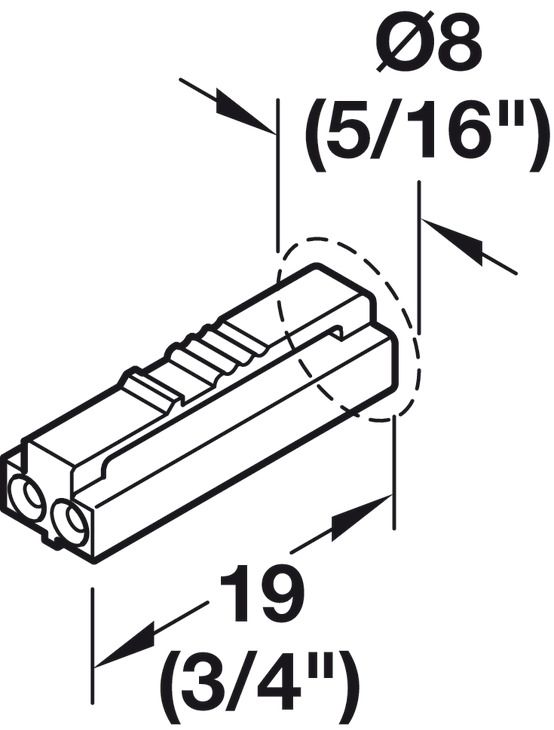

  - Drill hole Ø : Plug 5/16"

  - Material : Plastic

  - Number of leads : 2.00

  - Plug drill hole Ø : 8.00 mm

  - Clip drill hole Ø : 12.00 mm

  - Supplied with:

  - 1 lead plug/clip

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Instruction video (DE)

  Instruction video (EN)

  Hafele_Lighting_2024|Page 127
